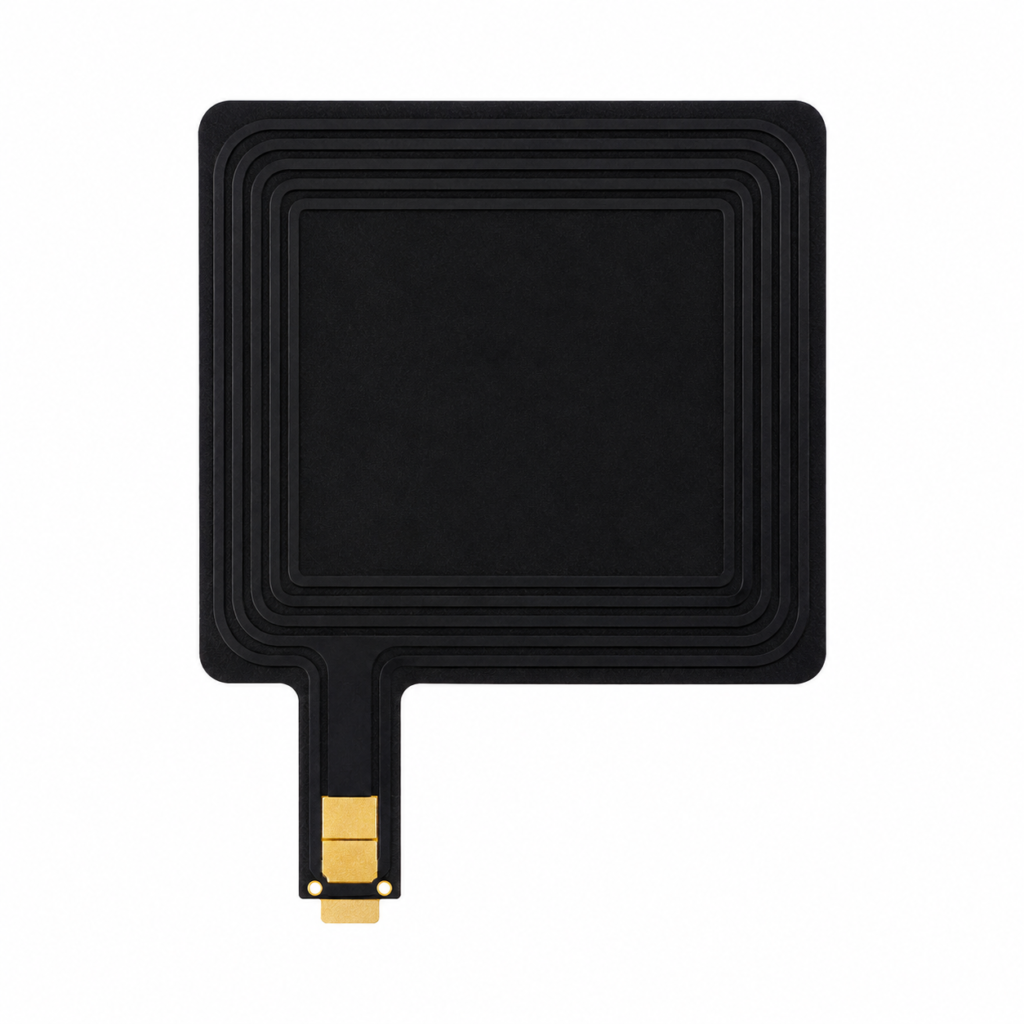

13.56MHz FPC NFC Antenna for Smart Devices | Custom Flexible NFC Antenna
| Parameter | Value |
|---|---|
| Product Type | FPC NFC Antenna |
| Operating Frequency | 13.56MHz |
| Antenna Structure | Flexible Printed Circuit (FPC) |
| Available Dimensions | Multiple sizes available |
| Reference Size 01 | 60.8 × 50 × 0.35 mm |
| Reference Size 02 | 60 × 45 × 0.25 mm |
| Reference Size 03 | Ø39 × 0.73 mm |
| Reference Size 04 | Approx. 38 × 36 mm |
| Reference Size 05 | 155 × 60 mm |
| Reference Size 06 | 25 × 25 × 0.16 mm |
| Reference Size 07 | 25 × 25 mm with 75 mm cable |
| Connection Options | FPC Contact / Soldered Lead / Cable / Connector, depending on design |
| Mounting Options | Adhesive Backing / Direct Integration, depending on model |
| Cable Length | Customizable where applicable |
| Operating Temperature | Model-dependent; selected source models specify approximately -40°C to +80°C / +85°C |
| RoHS | Specified for selected source models |
| Gain | Not Provided |
| VSWR | Not Provided |
| Impedance | Not Provided |
| Polarization | Not Provided |
| Reading Distance | Not Provided |
| Efficiency | Not Provided |
| Return Loss | Not Provided |
Short Description
13.56MHz FPC NFC Antenna designed for compact smart devices and embedded NFC systems. The flexible antenna structure supports multiple dimensions, connection methods, and customized integration requirements for OEM/ODM projects.
Product Content
Product Overview
The 13.56MHz FPC NFC Antenna is a flexible embedded antenna solution designed for NFC communication in smart terminals, access control equipment, charging stations, IoT devices, and other compact electronic products.
Its thin FPC construction allows the antenna to be integrated into devices where installation space and mechanical flexibility are important. Multiple antenna dimensions and connection structures are available to accommodate different enclosure designs and NFC module layouts.
Nova Antenna supports customized antenna dimensions, cable configurations, connector options, and mechanical integration requirements for OEM and ODM projects, helping hardware engineers adapt the antenna to specific device designs and NFC applications.
Key Features
- 13.56MHz NFC operation for near-field communication applications
- Flexible FPC construction suitable for compact embedded installations
- Ultra-thin antenna options for space-constrained electronic devices
- Multiple antenna sizes and structures available for different device layouts
- Flexible connection options, including FPC contacts, soldered leads, cables, and connectors depending on antenna design
- Custom dimensions, cable lengths, and connector configurations available
- Suitable for integration into smart terminals, IoT equipment, access control devices, and charging systems
- OEM/ODM antenna customization supported
Applications
- Smart Displays and Control Panels
- Access Control Terminals
- Smart Charging Stations
- Industrial NFC Readers
- Smart Home Devices
- IoT Equipment
- Interactive Terminals
- Smart Speakers
- Compact AI Devices
- Embedded NFC Systems
Customization Options
- Antenna dimension customization
- FPC shape and mechanical structure adjustment
- Cable length customization
- Connector customization
- Soldered lead configuration
- FPC contact configuration
- Adhesive backing options
- Device integration optimization
- OEM/ODM antenna development
FAQ
What applications is this 13.56MHz FPC NFC antenna suitable for?
This antenna family is designed for embedded NFC applications such as smart displays, access control terminals, charging stations, industrial readers, smart home devices, IoT equipment, and other compact electronic systems.
Can the antenna size be customized?
Yes. Antenna dimensions and FPC structures can be customized according to the available installation space, device enclosure, and integration requirements.
What connection options are available?
Depending on the antenna design, connection options can include direct FPC contacts, soldered leads, cable assemblies, and compact RF or wire connectors. The final connection method can be selected according to the customer’s hardware design.
Can the cable length be customized?
Yes. For antenna versions using external cables or wire leads, cable length can be customized according to device integration requirements.
Is this antenna suitable for compact devices?
Yes. The flexible and thin FPC structure makes these antennas suitable for space-constrained embedded electronics where conventional rigid antenna structures may be difficult to integrate.
Does Nova Antenna support OEM/ODM customization?
Yes. OEM/ODM support is available for antenna dimensions, FPC structure, cable configuration, connector type, mounting method, and device-specific integration requirements.
