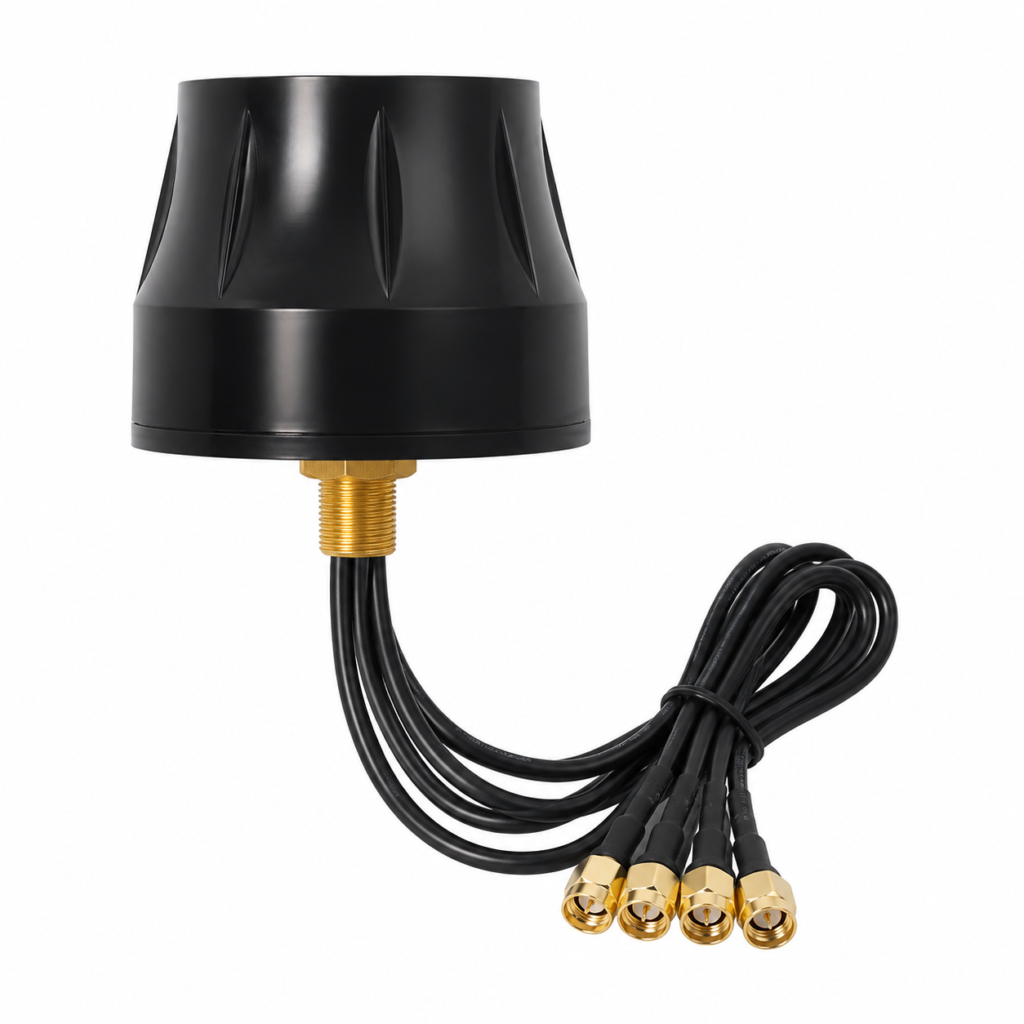

5G 4×4 MIMO Cabinet Antenna with 4 SMA Male Connectors
| Parameter | Value |
|---|---|
| Frequency Range | 600–6000 MHz |
| Gain | 8 dBi |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Polarization | Vertical |
| Radiation Pattern | Omnidirectional |
| Maximum Input Power | 50 W |
| Antenna Efficiency | Not Provided |
| Return Loss | Not Provided |
| Port Isolation | Not Provided |
| ECC | Not Provided |
| Parameter | Value |
|---|---|
| Antenna Type | 4×4 MIMO Cabinet Antenna |
| Connector | 4 × SMA Male |
| Cable Type | RG174 |
| Cable Length | 1 m / 3 m / Custom |
| Housing Material | ABS |
| Color | Black |
| Mounting Method | M12 Thread Mount |
| Additional Mounting Option | 3M Double-Sided Adhesive |
| Dimensions | Pending Confirmation |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| IP Rating | Not Provided |
Short Description
This 5G 4×4 MIMO cabinet antenna covers 600–6000 MHz and is designed for GSM, 3G, 4G, 5G, NB-IoT, DTU, and industrial wireless communication equipment. It features four RG174 cables, 4 × SMA Male connectors, omnidirectional radiation, vertical polarization, and an M12 threaded mounting structure.
Product Overview
The 5G 4×4 MIMO Cabinet Antenna is a compact external antenna designed for wideband cellular and wireless communication applications. Covering 600–6000 MHz, it supports a broad range of communication technologies including GSM, GPRS, 3G, 4G, 5G, and NB-IoT.
The antenna features a 4×4 MIMO configuration with four independent RG174 coaxial cables terminated with SMA Male connectors. Its omnidirectional radiation pattern and vertical polarization make it suitable for communication equipment requiring multi-port external antenna connectivity.
The compact black ABS housing uses an M12 threaded mounting structure for integration with compatible equipment enclosures and communication devices. Standard cable options include 1 m and 3 m lengths, with customized cable lengths available for different installation requirements.
Key Features
- Wideband 600–6000 MHz coverage
- 4×4 MIMO configuration
- 4 × SMA Male connectors
- Omnidirectional radiation pattern
- Vertical polarization
- RG174 coaxial cables
- Compact M12 threaded mounting structure
- 1 m, 3 m, and customized cable length options
Applications
- 5G cellular routers and gateways
- Industrial wireless communication equipment
- GSM, GPRS, 3G, 4G, and 5G devices
- NB-IoT and IoT gateways
- DTU and remote communication equipment
- Network modules and wireless terminals
- Communication cabinets and equipment enclosures
- Multi-port MIMO communication systems
Customization Options
- Cable length customization
- Connector type customization
- Cable assembly configuration
- Product branding customization
- Frequency customization subject to engineering evaluation
- OEM/ODM project support
FAQ
Q1: What frequency range does this antenna support?
The standard product supports 600–6000 MHz.
Q2: How many antenna ports does the product have?
The standard configuration uses 4 independent antenna cables with 4 × SMA Male connectors.
Q3: What type of cable is used?
The standard cable is RG174 coaxial cable.
Q4: What mounting method does the antenna use?
The antenna uses an M12 threaded mounting structure for integration with compatible equipment or enclosures.
Q5: Can the cable length be customized?
Yes. Standard options include 1 m and 3 m, and customized cable lengths are available.
Q6: Is the exact antenna size listed on the product page?
Not at this stage. The supplied product materials contain conflicting overall dimension information, so the exact dimensions are marked as Not Provided / Pending Confirmation rather than presenting an unverified value.
