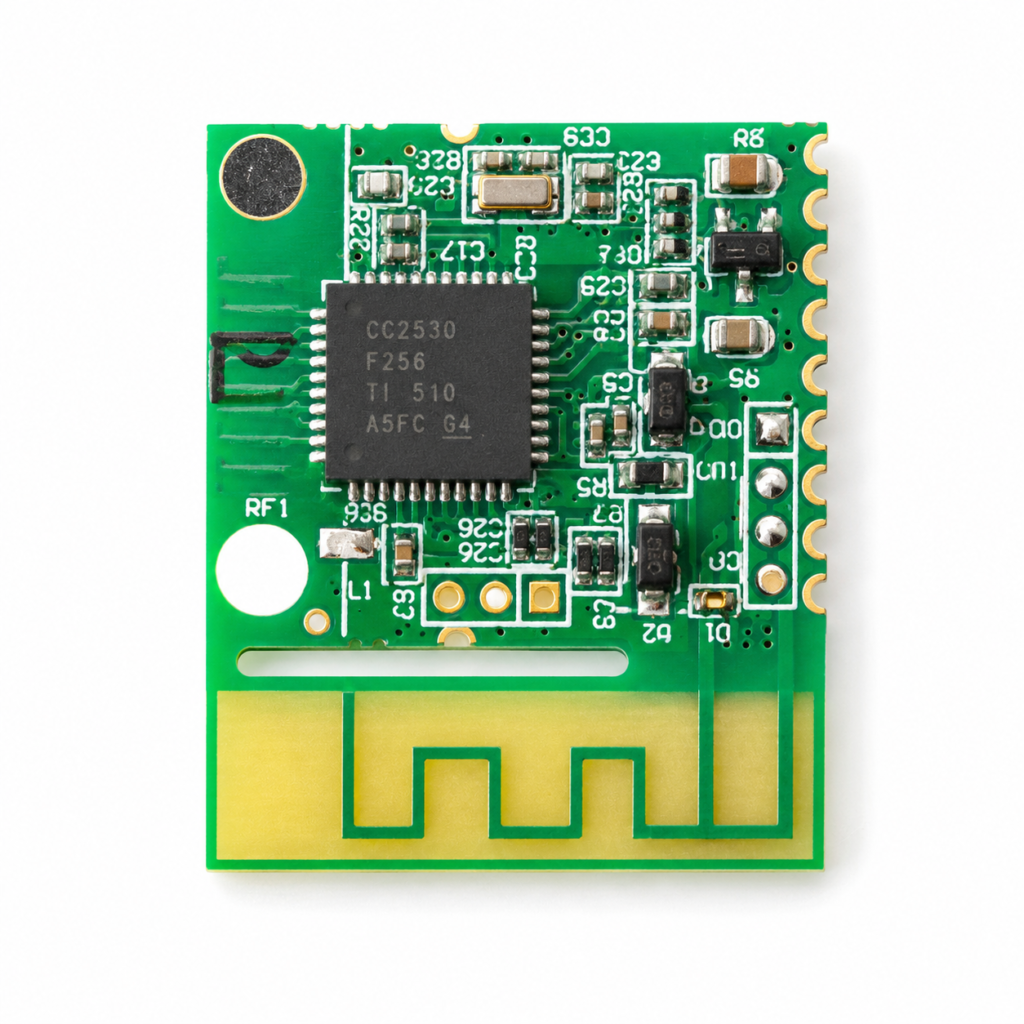

CC2530 Zigbee Wireless Module with Integrated PCB Antenna

Short Description

The CC2530 Zigbee Wireless Module is a compact embedded PCBA solution featuring an integrated PCB trace antenna for Zigbee-enabled IoT and smart device applications. Designed for integration into wireless control systems, smart home devices and sensor products, the module supports OEM/ODM and customized PCBA development.

Product Overview

The CC2530 Zigbee Wireless Module is an embedded wireless communication module designed for IoT, smart home and wireless control applications. Built around the CC2530 platform, the compact PCB integrates the wireless circuitry and a PCB trace antenna into a board-level solution suitable for integration into electronic devices.

The integrated PCB antenna helps simplify product integration by eliminating the need for a separate external antenna in suitable device designs. Its compact board-level construction makes the module suitable for embedded applications where installation space and system integration are important considerations.

The module can be used in smart sensors, smart lighting products, wireless controllers and other connected devices. OEM/ODM and PCBA development support can also be provided for customers requiring product-specific hardware integration and production solutions.

Key Features

• CC2530-based embedded wireless module design
• Zigbee wireless connectivity for IoT applications
• Integrated PCB trace antenna
• Compact board-level design for embedded integration
• Suitable for smart sensors, lighting and wireless control devices
• OEM/ODM and customized PCBA development support

Applications

• Smart Home Devices
• PIR Motion Sensors
• Smart Lighting Systems
• IoT Control Systems
• Wireless Controllers
• Connected Electronic Devices
• Embedded Automation Equipment

Customization Options

Nova Antenna can support OEM/ODM development according to project requirements. Available customization can include:

• PCB and PCBA design adjustment
• Module mechanical layout optimization
• Integrated antenna design optimization
• Hardware interface customization
• Component and BOM adaptation
• Prototype development
• SMT assembly and batch production
• OEM/ODM product development

FAQ

Q1: What applications is the CC2530 Zigbee Wireless Module suitable for?
The module is suitable for embedded wireless applications including smart home devices, PIR motion sensors, smart lighting systems, IoT controllers and other connected electronic products.

Q2: Does the module include an integrated antenna?
Yes. The supplied module uses an integrated PCB trace antenna located at the edge of the PCB, providing a compact board-level antenna solution for embedded device integration.

Q3: Can the module be customized for OEM projects?
Yes. OEM/ODM development can be supported according to project requirements, including PCB layout, hardware interfaces, antenna integration and related PCBA development.

Q4: Does Nova Antenna support PCBA manufacturing?
Yes. PCBA development support can include prototyping, component integration, SMT assembly and production according to confirmed project requirements.

Q5: What information is required for a customized module project?
Customers should provide available hardware requirements, PCB or Gerber files, interface requirements, BOM information, application requirements and expected production quantities. Additional engineering information may be requested depending on the project.
