Product Content

Short Description

The 5.8GHz 24dBi Dual-Polarized Panel Antenna is designed for outdoor point-to-point wireless links, featuring 5150–5850MHz coverage, 24dBi high gain, an 8° narrow beam and dual polarization for professional wireless bridge and remote networking applications.

Product Overview

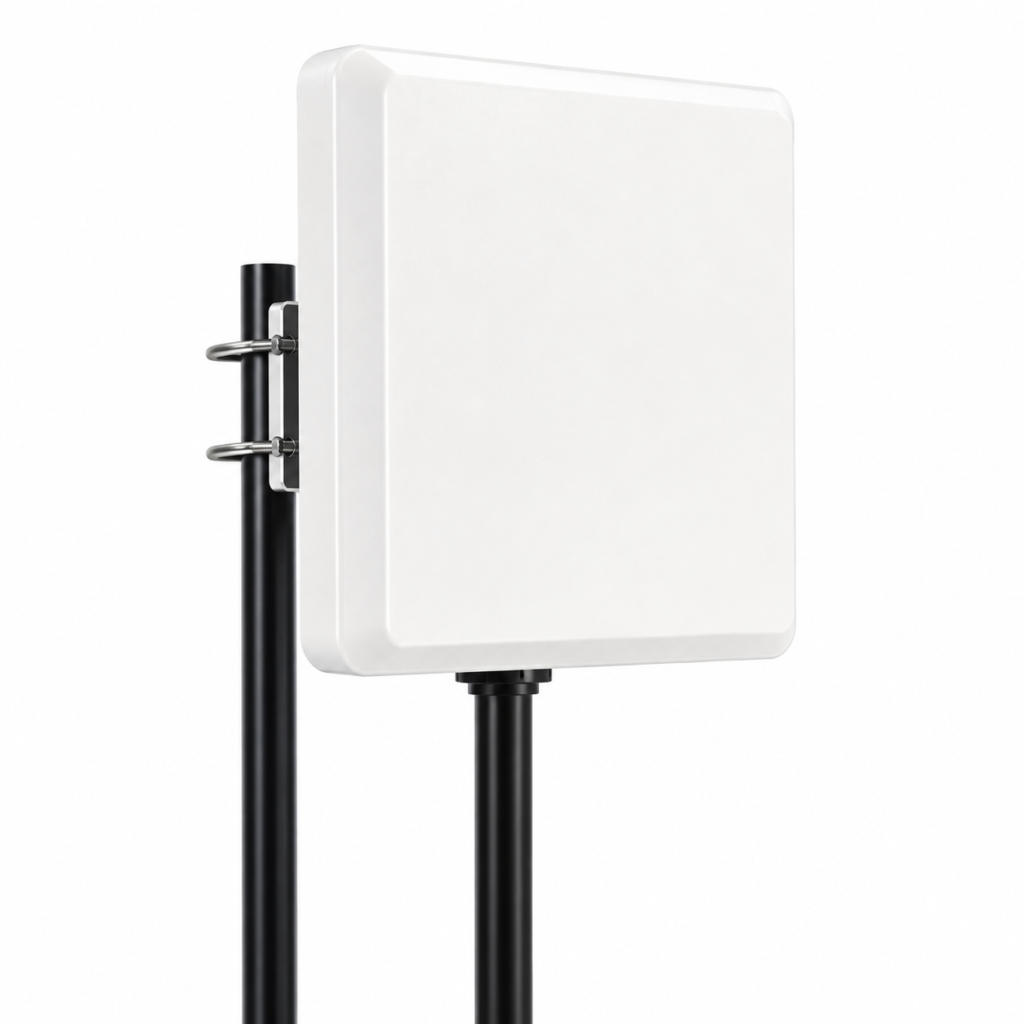

The 5.8GHz 24dBi Dual-Polarized Panel Antenna is a high-gain directional antenna designed for professional outdoor wireless communication systems. Operating across 5150–5850MHz, it is suitable for point-to-point wireless bridges, remote surveillance networks and industrial wireless links.

Featuring 24±1dBi gain, an 8° narrow beam and vertical + horizontal dual polarization, the antenna provides highly directional RF coverage for applications requiring focused wireless transmission. Its dual RF interface configuration supports MIMO wireless systems.

The antenna uses a sealed white ABS enclosure and a pole-mount installation structure suitable for outdoor deployments. A 0–15° adjustable tilt allows alignment toward the remote wireless node, making the antenna suitable for building-to-building links, remote monitoring networks, mining sites and other professional outdoor communication systems.

Key Features

• 5150–5850MHz frequency range
• 24±1dBi high gain directional design
• 8° narrow beam for focused wireless links
• Vertical + horizontal dual polarization
• Dual RF interfaces for MIMO applications
• VSWR ≤2.0
• Up to 50W input power
• Sealed ABS outdoor enclosure
• 0–15° adjustable installation angle
• Pole mounting for Φ30–Φ50mm poles
• Connector and RF cable customization available

Applications

• Point-to-point wireless bridge systems
• Building-to-building wireless links
• Outdoor WiFi networking
• Remote video surveillance networks
• Industrial wireless communication
• Mining area wireless networks
• Remote site connectivity
• WISP and wireless infrastructure
• Long-range directional RF links

Customization Options

• Frequency range customization
• RF connector customization
• RF cable type and length customization
• Housing and appearance customization
• Mounting configuration customization
• OEM/ODM antenna development

The standard product information indicates dual N-Female RF interfaces. Other connector and cable configurations can be customized according to project requirements.

FAQ

Q1: What applications is this 5.8GHz panel antenna suitable for?
A: It is designed for professional directional wireless applications including point-to-point wireless bridges, building-to-building links, remote surveillance networks, industrial wireless systems and remote site connectivity.

Q2: Does this antenna support MIMO applications?
A: Yes. The antenna uses vertical and horizontal dual polarization with two RF interfaces, making it suitable for compatible MIMO wireless systems.

Q3: What is the operating frequency range?
A: The specified operating frequency range is 5150–5850MHz.

Q4: What connectors are used on the antenna?
A: The standard configuration uses two N-Female RF connectors. Alternative connector configurations can be customized according to project requirements.

Q5: Can the antenna frequency and RF cable be customized?
A: Yes. Frequency range, RF cable type, cable length and connector configuration can be customized according to application requirements.

Q6: Does Nova Antenna support OEM/ODM service?
A: Yes. OEM/ODM services are available for frequency specifications, RF interfaces, cable configurations, mechanical design and other project-specific requirements.
