Short Description

RF ECA3216060A1T is a compact 2.4GHz SMD ceramic chip antenna featuring LTCC ceramic technology, 3.2 × 1.6 × 0.6mm miniature size, stable RF performance, and SMT compatibility for IoT, Bluetooth, and wireless electronic applications.

Product Overview

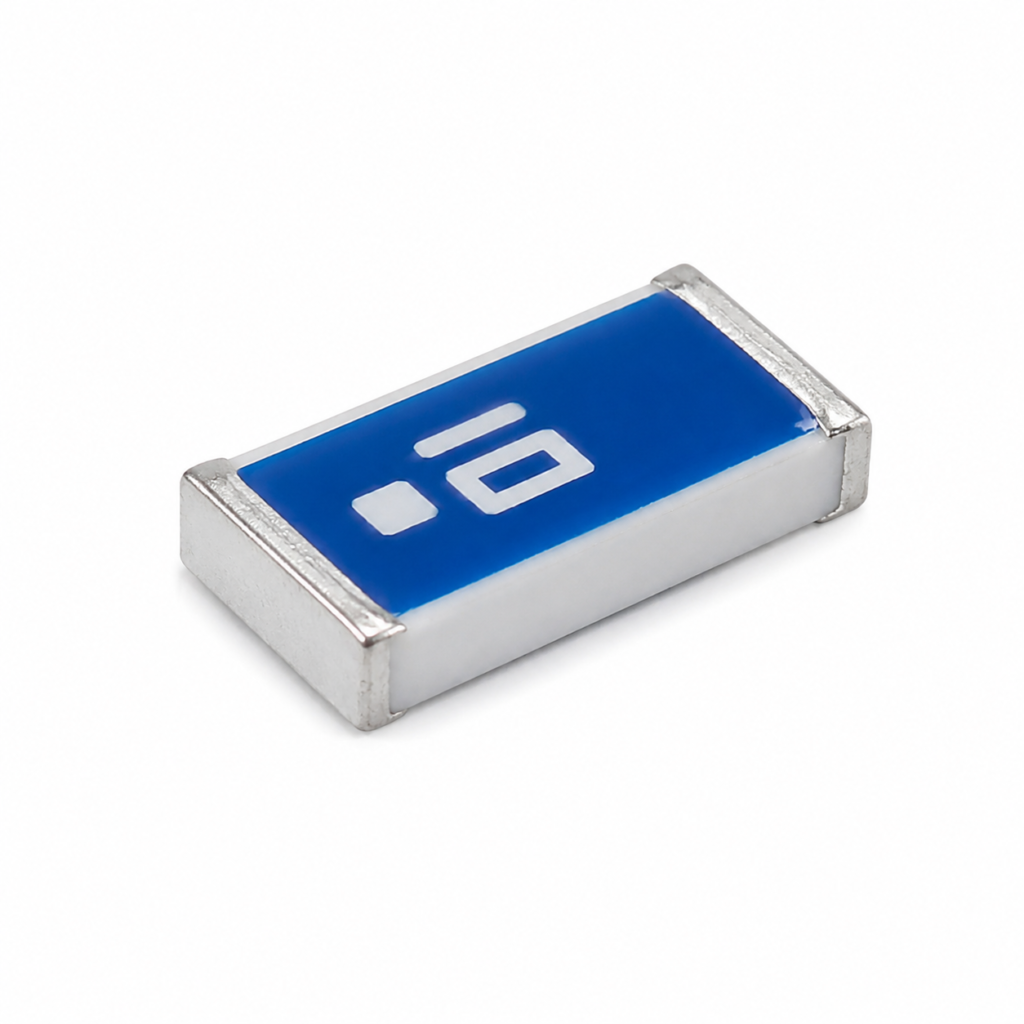

The RF ECA3216060A1T is a miniature SMD ceramic chip antenna designed for 2.4GHz wireless communication applications.

Using LTCC ceramic technology, this antenna provides a compact and reliable RF solution with a package size of only 3.2 × 1.6 × 0.6mm.

The surface mount design allows easy integration into PCB assemblies and supports high-volume automated manufacturing.

It is suitable for Bluetooth modules, IoT devices, wireless sensors, smart home products, and other compact wireless electronic equipment.

Key Features

• Compact SMD ceramic chip antenna design
• 2.4GHz ISM band operation
• Frequency range: 2400–2500MHz
• Miniature package size: 3.2 × 1.6 × 0.6mm
• LTCC ceramic technology
• Stable RF performance
• 50Ω impedance design
• SMT assembly compatible
• RoHS compliant and halogen-free design
• Suitable for high-density PCB applications

Applications

• Bluetooth modules
• IoT devices
• Smart home products
• Wireless sensors
• Wearable electronics
• Wireless communication modules
• Compact embedded wireless systems
• 2.4GHz ISM band devices

Customization Options

• Custom frequency band development
• Customized matching solutions
• PCB layout optimization support
• OEM antenna design
• Tape and reel packaging customization
• Bulk production support

FAQ

Q1: What frequency does the RF ECA3216060A1T antenna support?

The antenna supports the 2400–2500MHz frequency range for 2.4GHz ISM band applications.

Q2: What is the package size of this ceramic antenna?

The antenna size is 3.2 × 1.6 × 0.6mm.

Q3: Is this antenna suitable for SMT assembly?

Yes. The RF ECA3216060A1T is designed for surface mount technology (SMT) assembly.

Q4: What applications can use this antenna?

It is suitable for Bluetooth devices, IoT products, wireless sensors, smart home devices, and other compact wireless systems.

Q5: Can the antenna be customized?

Yes. Frequency range, matching design, packaging, and application requirements can be customized according to project needs.
