Product Content

Short Description

The GPS + BDS Ceramic Patch Antenna is a compact passive GNSS antenna designed for GPS and BeiDou positioning applications, featuring stable RF performance, lightweight ceramic structure and reliable signal reception for embedded devices.

Product Overview

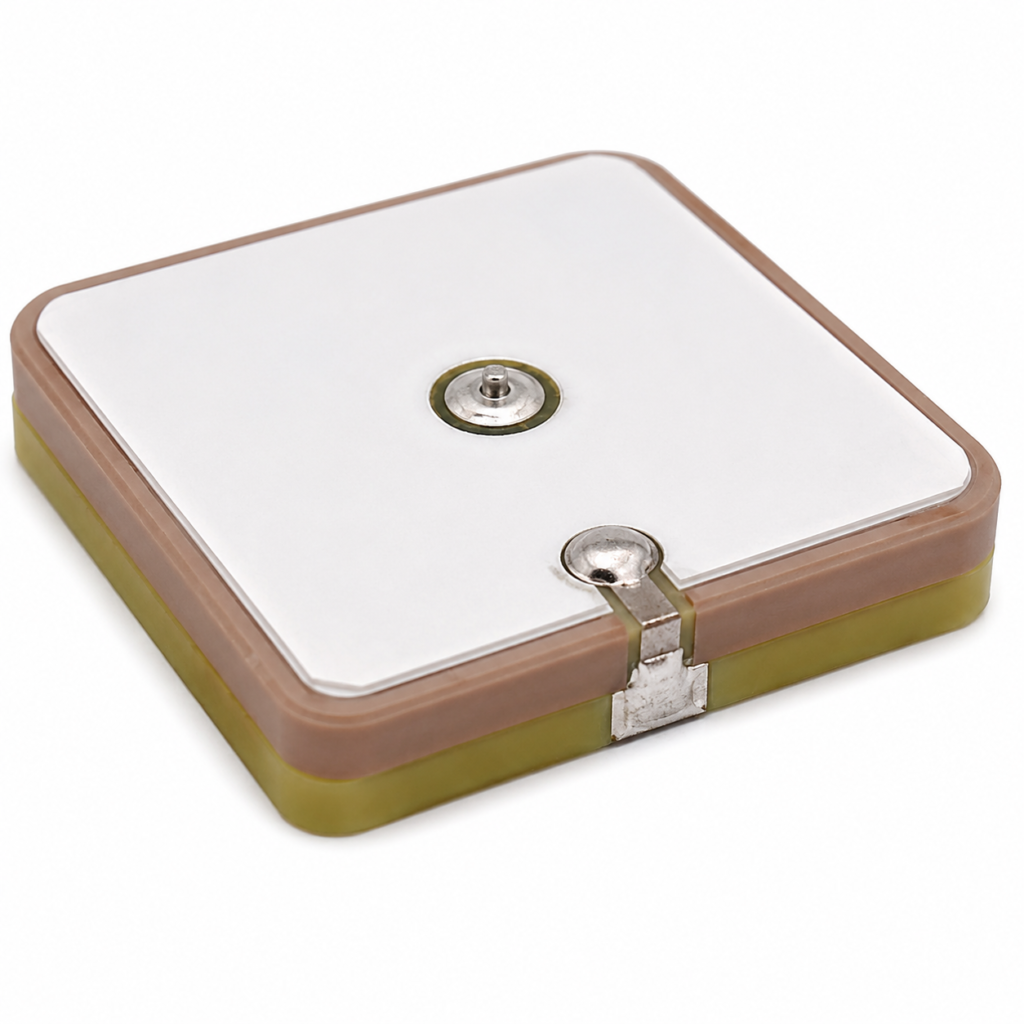

The GPS + BDS Ceramic Patch Antenna is a compact ceramic patch antenna designed for GNSS positioning systems requiring reliable GPS and BeiDou satellite signal reception. With a 25mm × 25mm × 4mm low-profile structure, it is suitable for space-limited embedded applications.

Featuring stable RF performance, 50Ω impedance and 8dBi antenna gain, this passive GNSS antenna provides reliable positioning support for various electronic devices. The ceramic patch structure enables compact integration while maintaining consistent satellite signal reception performance.

This antenna is suitable for GNSS modules, IoT positioning equipment, vehicle tracking systems, UAV navigation systems and other embedded positioning applications. Nova Antenna supports customization options including frequency requirements, mechanical design adjustments and OEM/ODM solutions.

Key Features

• GPS + BDS dual satellite system compatibility
• Compact 25mm × 25mm × 4mm ceramic patch structure
• Stable GNSS signal reception performance
• 8dBi antenna gain with 50Ω impedance
• Wide operating temperature range from -40°C to +85°C
• Lightweight embedded antenna design
• Direct solder mounting structure
• Supports OEM/ODM customization

Applications

• GNSS positioning equipment
• GPS tracking devices
• IoT positioning systems
• Vehicle tracking systems
• UAV navigation systems
• Drone positioning modules
• Industrial wireless equipment
• Embedded GNSS modules

Customization Options

• Frequency customization for different GNSS requirements
• Mechanical size adjustment according to device integration needs
• Connector and interface customization
• Mounting structure optimization
• OEM/ODM project support
• Customized packaging and product solutions

FAQ

Q1: What applications is this GPS + BDS antenna suitable for?

This ceramic patch antenna is designed for GNSS positioning applications including tracking devices, IoT equipment, UAV systems and embedded navigation modules.

Q2: Can the antenna frequency be customized?

Yes. Nova Antenna supports frequency customization according to customer GNSS application requirements.

Q3: What connector options are available?

The standard version uses a direct solder connection. Other interface solutions can be discussed according to project requirements.

Q4: Does Nova Antenna support OEM/ODM service?

Yes. Nova Antenna provides OEM/ODM support including mechanical adjustment, frequency customization and project-based antenna solutions.
