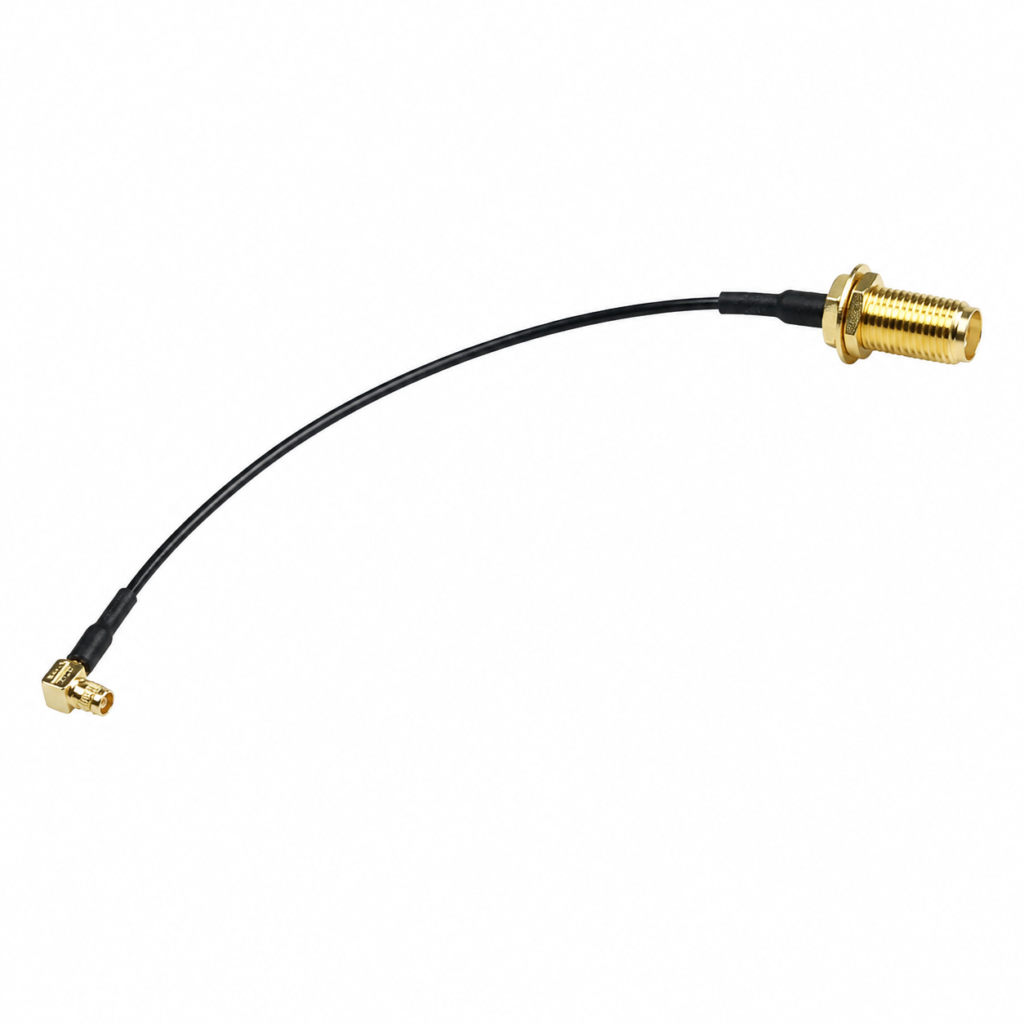

IPEX to SMA Female RF Coaxial Cable Assembly 0-6GHz with RG1.13 Cable
| Parameter | Specification |
|---|---|
| Product Type | IPEX to SMA Female RF Cable Assembly |
| Cable Type | RG1.13 Coaxial Cable |
| Frequency Range | 0-6GHz |
| Impedance | 50Ω |
| VSWR | ≤1.8 |
| Cable Length | 50mm-1000mm (Customizable) |
| Connector A | IPEX Connector |
| Connector B | SMA Female Connector |
| Cable Material | RG1.13 Coaxial Cable |
| Rated Voltage | 335V |
| Withstand Voltage | 1000V |
| Insulation Resistance | ≥5000MΩ |
| Contact Resistance | Inner conductor ≤3mΩ |
| Outer conductor ≤2.5mΩ |
Short Description
High-quality IPEX to SMA female RF coaxial cable assembly designed for wireless communication and antenna connection applications. Featuring RG1.13 coaxial cable, 50Ω impedance, low VSWR, and customizable cable length and connector options.
Product Overview
The IPEX to SMA Female RF Coaxial Cable Assembly is designed for reliable RF signal transmission between wireless modules, antennas, and communication devices.
This cable assembly uses RG1.13 coaxial cable with compact IPEX connectors and SMA female bulkhead connectors, providing flexible installation and stable RF performance.
With support for customized cable lengths, connector types, and assembly configurations, it is suitable for various RF communication, IoT, wireless module, and antenna integration applications.
Key Features
- Supports IPEX to SMA female RF connection
- RG1.13 coaxial cable for flexible installation
- 50Ω impedance for standard RF systems
- Low VSWR performance for stable signal transmission
- Compact design for space-limited applications
- Supports customized cable length
- Multiple connector options available
- Suitable for antenna and wireless module connections
Applications
- Wireless communication equipment
- IoT devices
- RF modules
- GPS and navigation systems
- WiFi and Bluetooth devices
- Cellular communication equipment
- Antenna extension applications
- Embedded RF systems
Customization Options
- Cable length customization
- IPEX connector generation selection
- SMA connector type customization
- Cable color customization
- Connector combination customization
- OEM/ODM cable assembly service
FAQ
Q1: What cable type is used for this RF cable assembly?
A1: This product uses RG1.13 coaxial cable.
Q2: What is the impedance of the cable?
A2: The cable impedance is 50Ω.
Q3: Can the cable length be customized?
A3: Yes. Cable length can be customized according to customer requirements.
Q4: Which IPEX connectors are available?
A4: 1st generation IPEX, 4th generation IPEX, and other connector options can be customized.
Q5: Can other SMA connector types be supplied?
A5: Yes. Different SMA connector configurations are available for customization.
