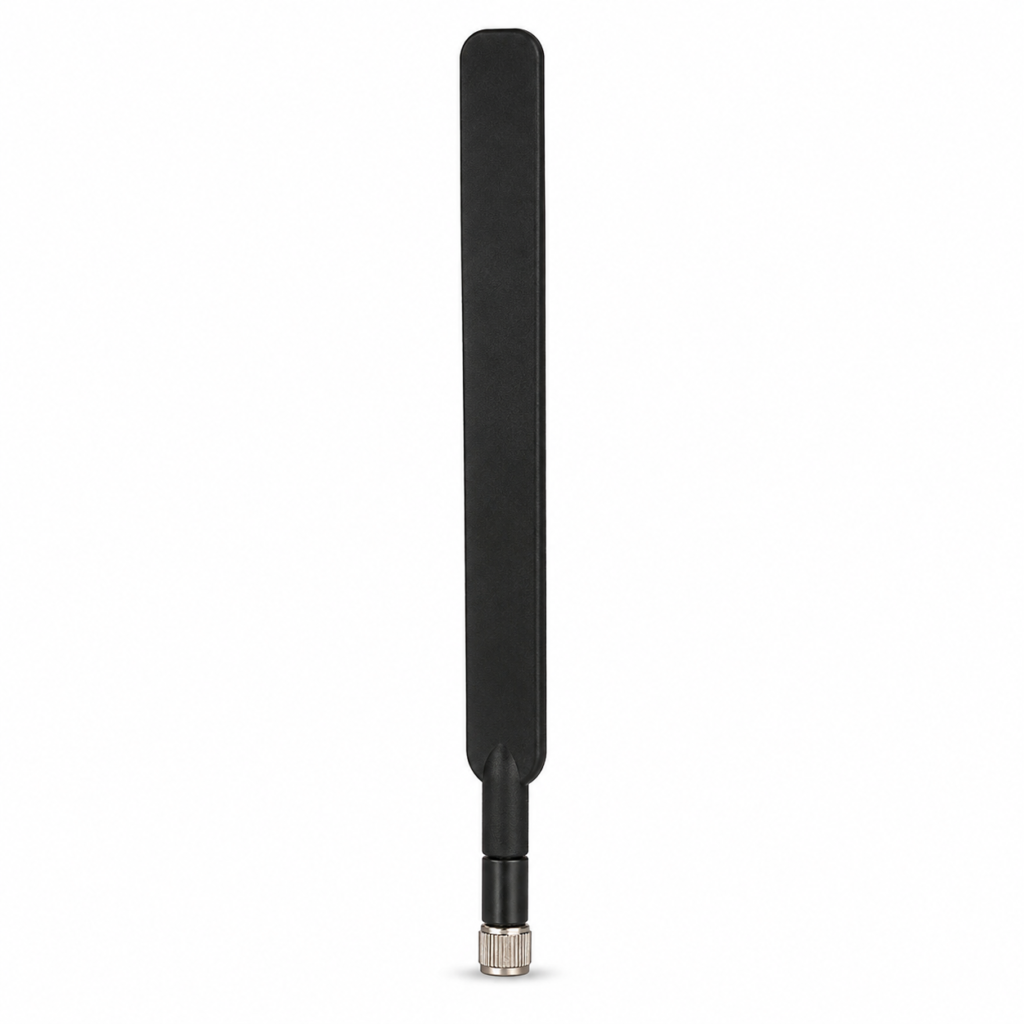

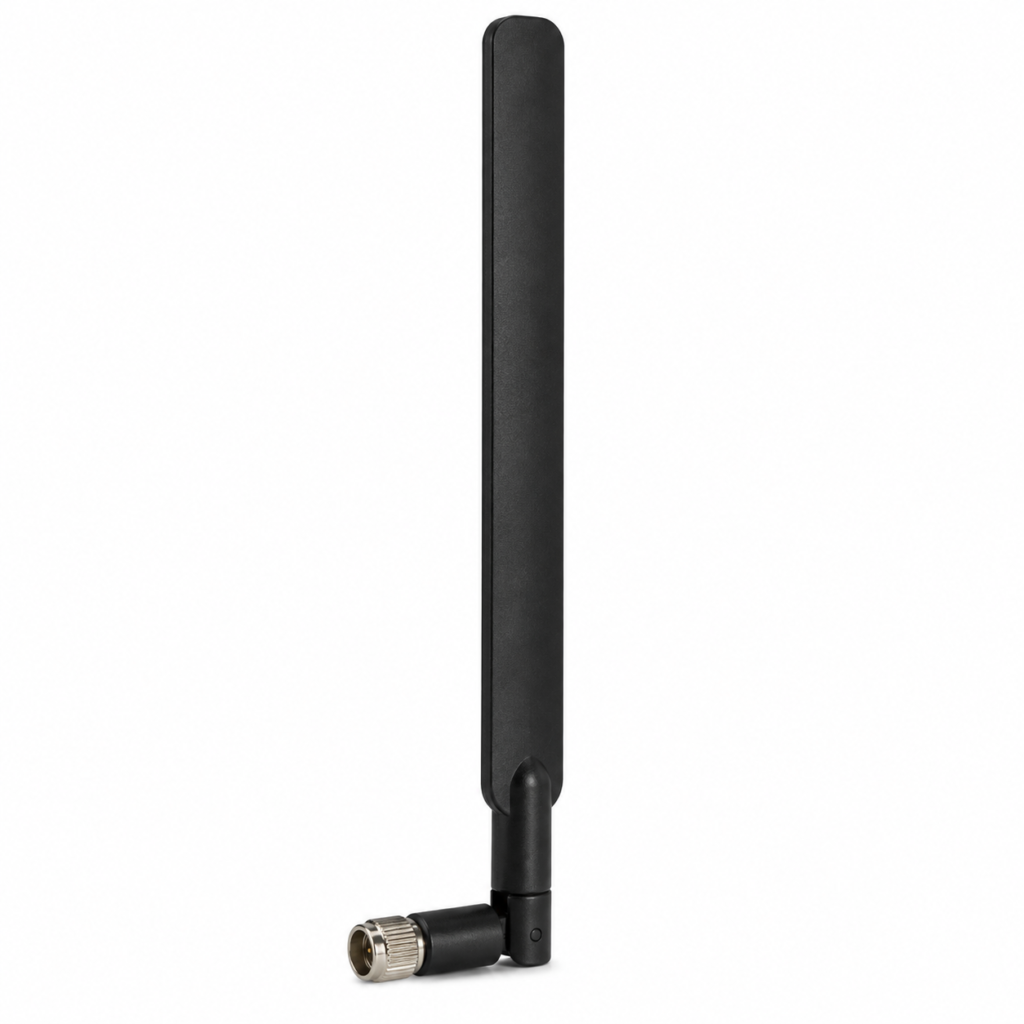

4G LTE Paddle Antenna 700–2700MHz 5dBi with SMA Connector
| Parameter | Value |
|---|---|
| Frequency Range | 700–2700 MHz |
| Gain | 5 dBi |
| VSWR | ≤1.5* |
| Impedance | 50 Ω |
| Radiation Pattern | Omnidirectional |
| Polarization | Not Provided |
| Efficiency | Not Provided |
| Return Loss | Not Provided |
| Parameter | Value |
|---|---|
| Antenna Type | External Paddle Antenna |
| Connector | SMA Male / Female Options |
| Overall Length | 192 mm |
| Antenna Body Length | 170 mm |
| Bottom Section Reference | 32 mm |
| Adjustable Angle | 90° / 135° / 180° |
| Color | Black / White |
| Weight | 18 g |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +80°C |
| Cable | Not Applicable / Not Provided |
Short Description
The 4G LTE Paddle Antenna is a 700–2700MHz external cellular antenna featuring 5dBi gain, omnidirectional coverage and an adjustable SMA connector design. It is suitable for 4G LTE routers, IoT gateways, cellular terminals and wireless communication equipment.
Product Overview
The 4G LTE Paddle Antenna is an external cellular antenna designed for wireless equipment operating across the 700–2700MHz frequency range. Its slim paddle-style housing provides a practical antenna solution for routers, gateways, IoT terminals and other cellular communication devices.
With 5dBi gain, 50Ω impedance and omnidirectional radiation, the antenna is designed for flexible integration into cellular communication equipment. The adjustable joint supports 90°, 135° and 180° positioning, allowing the antenna orientation to be adapted to different equipment layouts.
SMA connector configurations and black or white housing options are available according to product requirements. Nova Antenna can also support OEM/ODM customization for compatible antenna projects.
Key Features
- 700–2700MHz wide frequency coverage
- 5dBi antenna gain
- Omnidirectional radiation pattern
- 50Ω impedance
- Adjustable 90° / 135° / 180° antenna positioning
- SMA connector options
- Black and white housing options
- Compact external paddle design
Applications
- 4G LTE routers
- Cellular IoT gateways
- Wireless communication terminals
- Cellular modems
- Industrial IoT equipment
- Smart home devices
- Remote monitoring equipment
- Cellular communication systems
Customization Options
- Frequency customization
- Connector configuration customization
- Antenna housing color customization
- Mechanical structure adjustment
- Application-specific antenna optimization
- OEM/ODM antenna development support
FAQ
Q1: What applications is this 4G LTE paddle antenna suitable for?
This antenna is suitable for 4G LTE routers, cellular IoT gateways, wireless communication terminals, cellular modems, industrial IoT equipment and other devices requiring an external cellular antenna.
Q2: What frequency range does the antenna support?
The supplied product specification lists a frequency range of 700–2700MHz.
Q3: What connector options are available?
The product materials specify SMA connector options, including male and female configurations. Connector configuration can be selected according to the equipment interface requirements.
Q4: Can the antenna angle be adjusted?
Yes. The supplied specifications list adjustable positions of 90°, 135° and 180°.
Q5: Can the antenna be customized?
Yes. Nova Antenna supports antenna customization according to project requirements, including frequency, connector configuration, housing options and mechanical design.
Q6: Does Nova Antenna support OEM/ODM projects?
Yes. OEM/ODM support is available for customers requiring antenna integration or application-specific product development.
