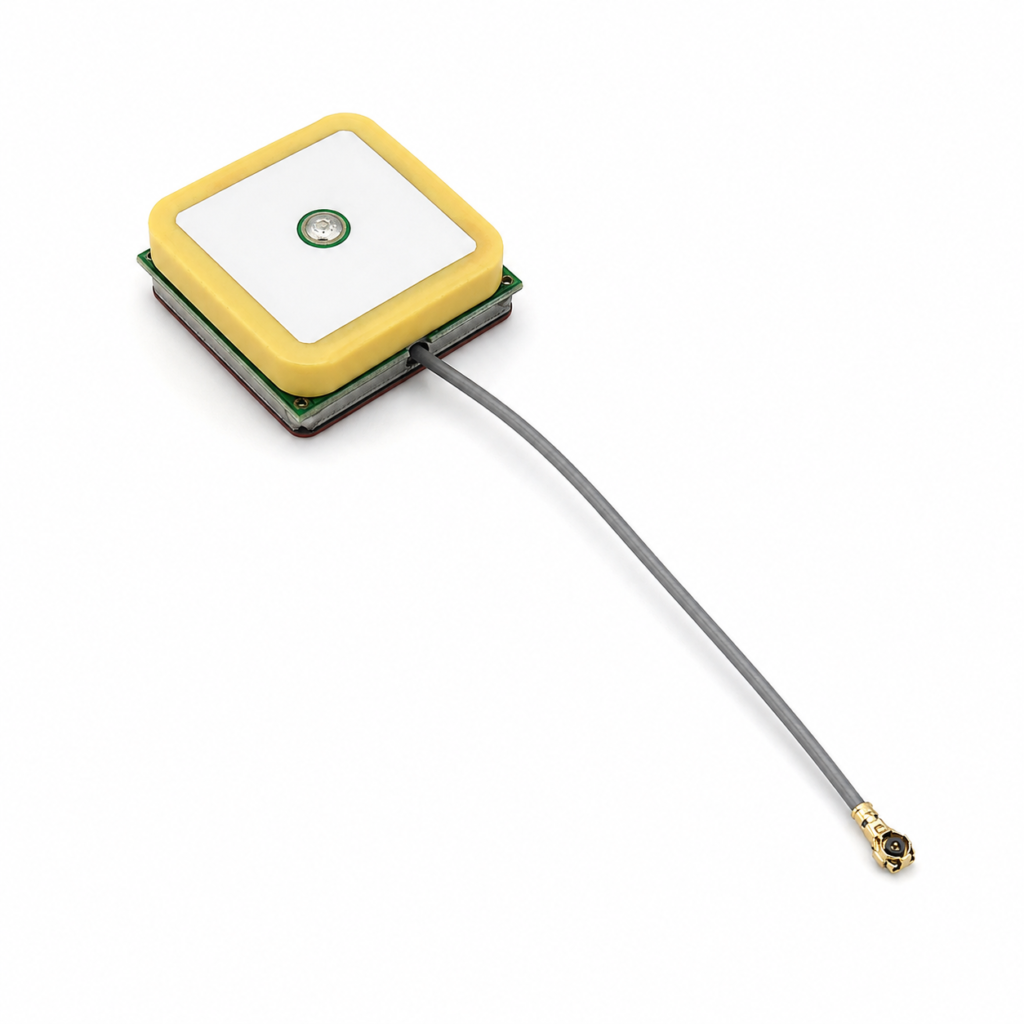

GPS Active Ceramic Patch Antenna with IPEX Connector | Embedded GNSS Antenna Solution
| Parameter | Value |
|---|---|
| Frequency Range | 1575.42 MHz |
| Gain | Not Provided |
| VSWR | <2.0 (To Be Verified) |
| Impedance | 50Ω |
| Polarization | Not Provided |
| Radiation Pattern | Not Provided |
| Operating Voltage | 5V |
| Parameter | Value |
|---|---|
| Antenna Type | Active Ceramic Patch Antenna |
| Connector | IPEX-1 (To Be Verified) |
| Cable Type | RG174 / Customizable |
| Cable Length | Not Provided |
| Mounting Method | Internal Adhesive Mounting |
| Dimension | Not Provided |
| Operating Temperature | Not Provided |
| Image | Filename | Alt Text |
|---|---|---|
| Main Product Image | gps-active-ceramic-patch-antenna.jpg | GPS Active Ceramic Patch Antenna with IPEX Connector |
| Dimension & Connector Image | gps-antenna-dimension-connector.jpg | GPS active ceramic patch antenna dimension and IPEX connector detail |
| Key Features Image | gps-active-antenna-key-features.jpg | GPS active antenna key features and embedded design |
| Application Scene Image | gps-active-antenna-application.jpg | GPS active ceramic patch antenna application in vehicle navigation system |
Product Content
Short Description
The GPS Active Ceramic Patch Antenna is designed for embedded GNSS positioning systems, featuring a compact ceramic patch structure, flexible cable connection and IPEX connector support for vehicle navigation, tracking devices and intelligent transportation applications.
Product Overview
The GPS Active Ceramic Patch Antenna is a compact embedded GNSS antenna solution designed for reliable positioning applications. It combines a ceramic patch antenna element with an integrated cable assembly, providing flexible installation options for space-limited electronic devices.
With a compact structure, 50Ω impedance design and IPEX connector support, this antenna is suitable for internal installation in navigation equipment, tracking terminals and intelligent transportation systems.
The antenna supports frequency customization and cable configuration options, allowing OEM customers to adapt the antenna design according to different hardware requirements.
Key Features
- Compact ceramic patch antenna structure for embedded installation
- Stable GNSS signal reception performance
- Flexible coaxial cable connection design
- IPEX connector support for compact electronic devices
- Supports frequency and cable customization for OEM applications
Applications
- Vehicle navigation systems
- GPS tracking equipment
- Telematics devices
- Intelligent transportation systems
- Embedded positioning terminals
- UAV positioning systems
Customization Options
- Frequency customization
- Cable length customization
- Connector customization
- Antenna structure adjustment
- OEM / ODM support
FAQ
Q1: What applications is this GPS antenna suitable for?
A1: This GPS active ceramic patch antenna is suitable for vehicle navigation systems, tracking devices, telematics equipment and other embedded GNSS positioning applications.
Q2: Can the antenna frequency be customized?
A2: Yes. Nova Antenna supports frequency customization according to customer GNSS system requirements.
Q3: What connector options are available?
A3: The standard configuration uses an IPEX connector. Other connector options can be customized according to application requirements.
Q4: Does Nova Antenna support OEM/ODM service?
A4: Yes. Nova Antenna provides OEM/ODM customization including frequency, cable length, connector and mechanical design adjustments.
