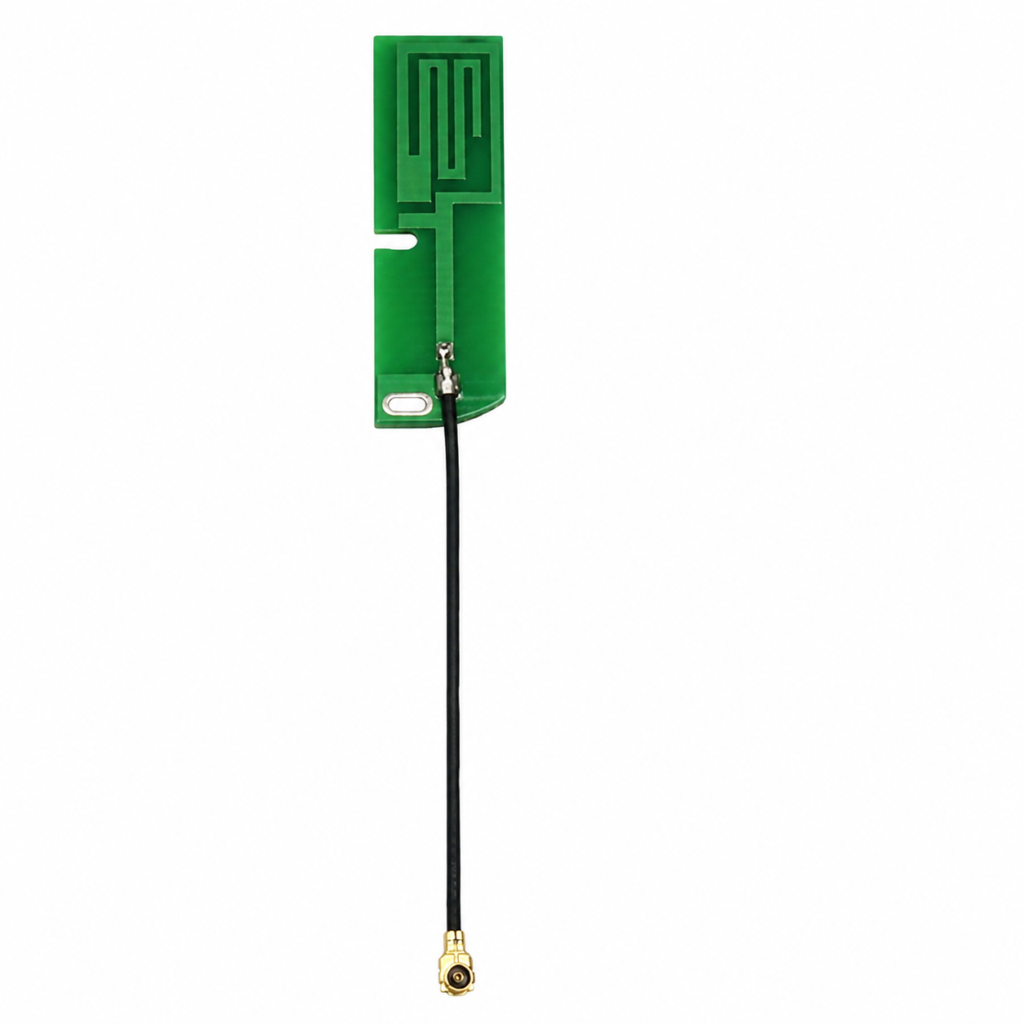

690–960MHz Internal PCB Antenna for NB-IoT and GSM
| Parameter | Value |
|---|---|
| Frequency Range | 690–960 MHz |
| Gain | 3 ± 0.5 dBi |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Polarization | Horizontal / Vertical |
| Radiation Pattern | Not Provided |
| Efficiency | Not Provided |
| Return Loss | Not Provided |
| Maximum Power | Not Provided |
| Parameter | Value |
|---|---|
| Antenna Type | Internal PCB Antenna |
| PCB Material | PCB |
| Dimension | 12 × 39 × 1 mm |
| Cable Type | RF1.13 / RF0.81 |
| Cable Length | Multiple lengths available |
| Connector Options | IPEX1 / IPEX4 / SMA / Soldering |
| Weight | Not Provided |
| Mounting Method | Internal integration |
| Operating Temperature | Not Provided |
Short Description
The 690–960MHz Internal PCB Antenna is a compact embedded antenna designed for NB-IoT, GSM and IoT wireless communication devices. It features 3 ± 0.5 dBi gain, VSWR ≤ 1.5 and flexible cable and connector options for customized integration.
Product Overview
The 690–960MHz Internal PCB Antenna is a compact RF antenna designed for integration into NB-IoT, GSM and other embedded wireless communication devices. Its small 12 × 39 × 1 mm PCB structure helps support space-efficient antenna integration.
With a frequency range of 690–960 MHz, 50 Ω impedance, 3 ± 0.5 dBi gain and VSWR ≤ 1.5, the antenna is designed for reliable integration into compatible wireless communication systems.
Flexible RF1.13 or RF0.81 cable options, together with IPEX1, IPEX4, SMA or soldering connection options, allow the antenna configuration to be adapted to different device layouts and integration requirements.
Key Features
- 690–960 MHz frequency coverage
- 3 ± 0.5 dBi gain
- VSWR ≤ 1.5
- Compact 12 × 39 × 1 mm PCB design
- 50 Ω impedance
- RF1.13 and RF0.81 cable options
- IPEX1, IPEX4, SMA and soldering connection options
- Supports frequency, cable, connector and mechanical customization
Applications
- NB-IoT devices
- GSM communication modules
- IoT wireless terminals
- Smart home devices
- Wireless data transmission modules
- Embedded communication equipment
- Industrial IoT devices
Customization Options
- Frequency range customization
- Antenna size and shape adjustment
- PCB and mechanical design adjustment
- RF1.13 or RF0.81 cable selection
- Customized cable length
- IPEX1, IPEX4, SMA or soldering connection options
- OEM/ODM project support
FAQ
Q1: What applications is this antenna suitable for?
A: This antenna is suitable for NB-IoT devices, GSM communication modules, IoT terminals, smart home products, wireless data transmission equipment and other embedded wireless applications operating within the applicable frequency range.
Q2: Can the antenna frequency be customized?
A: Yes. Frequency customization is available according to project requirements.
Q3: What connector options are available?
A: Available connection options include IPEX1, IPEX4, SMA and soldering configurations.
Q4: Can the cable length be customized?
A: Yes. Different cable lengths can be configured according to device installation requirements.
Q5: Does Nova Antenna support OEM/ODM service?
A: Yes. Nova Antenna supports antenna customization including frequency, cable, connector and mechanical design adjustments for OEM/ODM projects.
