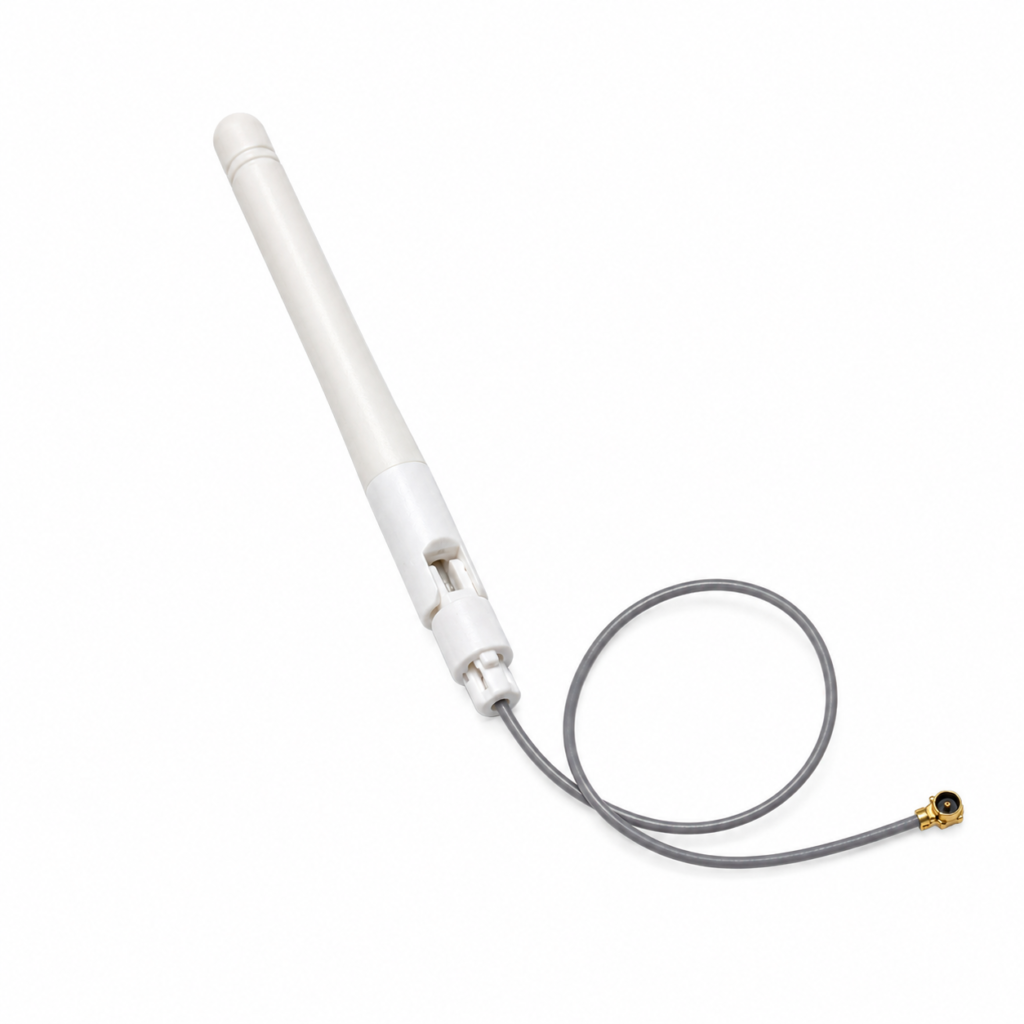

The 2.4GHz WiFi Antenna is a compact omnidirectional antenna covering 2400–2500 MHz with 3dBi gain, ≤1.5 VSWR and an IPEX connector. Designed for WiFi routers, IoT modules, smart home devices and embedded wireless equipment.

Product Overview

The 2.4GHz WiFi Antenna is an omnidirectional antenna designed for wireless equipment operating across the 2400–2500 MHz frequency range. Its compact external antenna structure and flexible coaxial feed make it suitable for integration into routers, IoT gateways and other wireless devices.

With 3dBi gain, ≤1.5 VSWR, 50Ω impedance and vertical polarization, the antenna provides a practical RF solution for 2.4GHz wireless communication systems. The standard configuration uses a 1.13 mm coaxial cable with an IPEX connector for connection to compatible wireless modules.

The antenna is available in black or white. Frequency, connector and cable length can be customized for OEM/ODM projects, allowing integration into different wireless hardware platforms.

Key Features

• 2400–2500 MHz frequency coverage
• 3dBi omnidirectional gain
• VSWR ≤ 1.5
• 50Ω impedance
• Vertical polarization
• Compact IPEX connector
• Flexible 1.13 mm coaxial cable
• Black and white housing options
• -40°C to +85°C operating temperature
• Customizable frequency, connector and cable length

Applications

• WiFi routers
• IoT gateways and modules
• Smart home devices
• Wireless access equipment
• Security devices
• Embedded wireless systems
• Wireless terminals
• 2.4GHz communication equipment

Customization Options

• Frequency customization
• Connector customization
• Cable length customization
• Black or white housing options
• Mechanical configuration adjustment
• OEM/ODM antenna solutions

FAQ

Q1: What frequency range does this WiFi antenna support?
The standard antenna covers 2400–2500 MHz for 2.4GHz wireless communication applications.

Q2: What applications is this antenna suitable for?
It is suitable for WiFi routers, IoT modules, smart home equipment, wireless terminals, security devices and other embedded 2.4GHz wireless systems.

Q3: What connector does the antenna use?
The standard configuration uses an IPEX connector. Other connector configurations can be customized according to project requirements.

Q4: Can the cable length be customized?
Yes. The standard cable length is 100 mm, and other cable lengths can be configured for OEM/ODM projects.

Q5: Is the antenna available in different colors?
Yes. Black and white versions are available.

Q6: Does Nova Antenna support OEM/ODM customization?
Yes. Frequency, connector, cable length and mechanical configuration can be customized according to specific integration requirements.
