Product Content

Short Description

The GNSS RTK Mushroom Antenna is designed for high precision positioning systems, supporting multi-constellation GNSS reception with stable RF performance, full-band frequency coverage, and reliable operation for RTK surveying, UAV mapping, and industrial positioning applications.

Product Overview

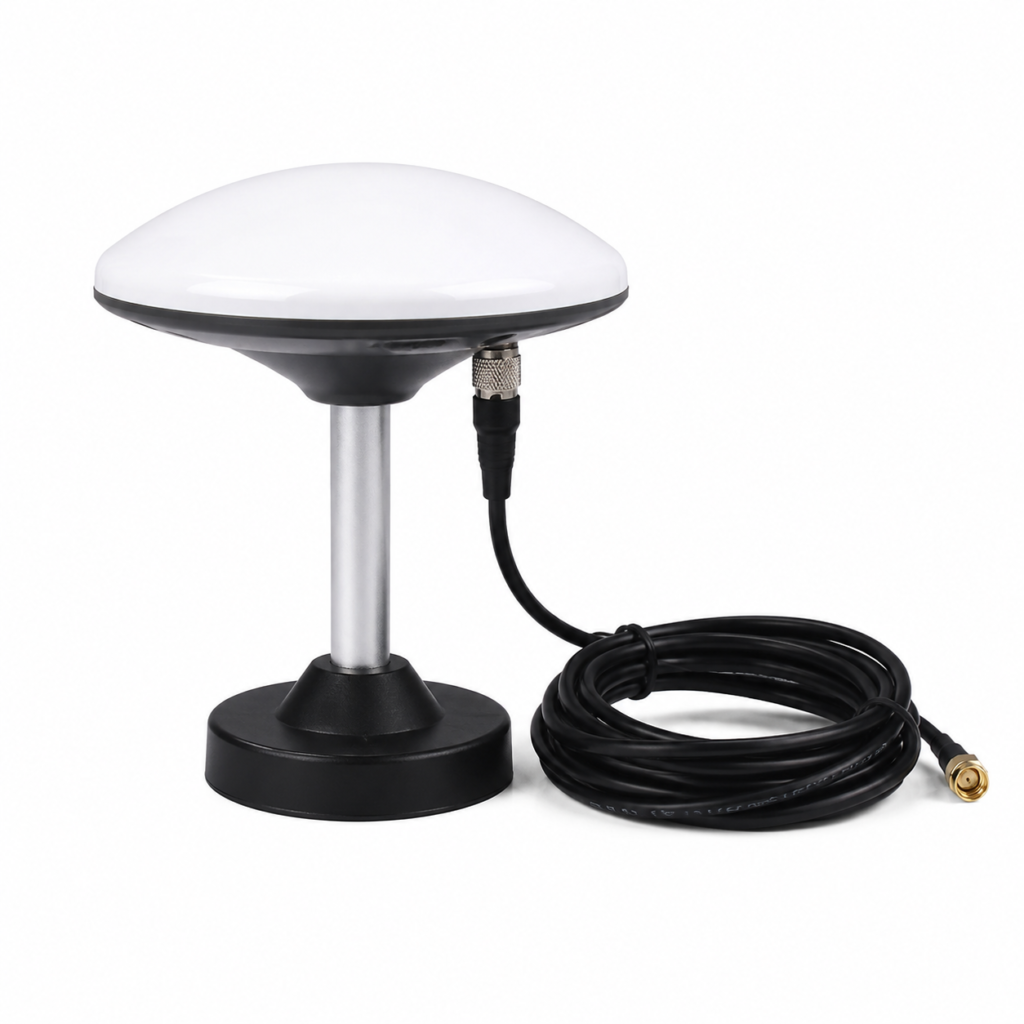

The GNSS RTK Mushroom Antenna is a professional external active antenna designed for high precision GNSS positioning applications. Its mushroom-style housing provides stable signal reception performance and reliable operation in demanding outdoor environments.

Supporting multiple satellite navigation systems including GPS, BDS, GLONASS, GALILEO, QZSS, and IRNSS, this antenna covers a wide GNSS frequency range from 1164–1290MHz and 1525–1615MHz for advanced positioning systems.

With a 40dB LNA gain, 50Ω impedance, RHCP polarization, and IP67 protection design, the antenna is suitable for RTK surveying equipment, UAV mapping systems, precision agriculture equipment, and industrial positioning solutions.

Key Features

• Multi-constellation GNSS support including GPS, BDS, GLONASS, GALILEO, QZSS and IRNSS
• Full-band GNSS frequency coverage for professional positioning applications
• Stable RF performance with integrated 40dB LNA gain
• RHCP polarization design for GNSS signal reception
• IP67 waterproof and dustproof protection for outdoor environments
• Wide operating temperature range from -40°C to +85°C
• TNC-K antenna connector with SMA cable connection option
• Supports OEM customization for frequency, cable length, and connector options

Applications

• RTK surveying equipment
• GNSS measurement systems
• UAV mapping and aerial surveying systems
• Precision agriculture equipment
• Autonomous navigation systems
• Industrial positioning systems
• Wireless telemetry and monitoring equipment

Customization Options

• Frequency customization
• Cable length customization
• Connector customization
• Mechanical structure adjustment
• OEM / ODM antenna development support

FAQ

Q1: What applications is this GNSS RTK antenna suitable for?

This antenna is designed for professional GNSS positioning applications including RTK surveying, UAV mapping, precision agriculture, and industrial positioning systems.

Q2: Which GNSS systems does this antenna support?

The antenna supports multiple GNSS systems including GPS, BDS, GLONASS, GALILEO, QZSS, and IRNSS.

Q3: Can the antenna frequency be customized?

Yes. Nova Antenna supports frequency customization according to customer system requirements.

Q4: What connector options are available?

The standard configuration uses a TNC-K antenna connector with SMA cable connection. Other connector options can be customized.

Q5: Does Nova Antenna support OEM/ODM service?

Yes. Nova Antenna provides OEM and ODM customization services including frequency, cable, connector, and mechanical design adjustments.
