Product Content

Short Description

English

The WiFi 7 External Antenna covers 2400–2500 MHz and 5100–7000 MHz with 2.35 dBi gain. Its compact 134 mm hinged design and SMA/RP-SMA connector options make it suitable for routers, wireless gateways, access points and other WiFi networking equipment.

Product Overview

English

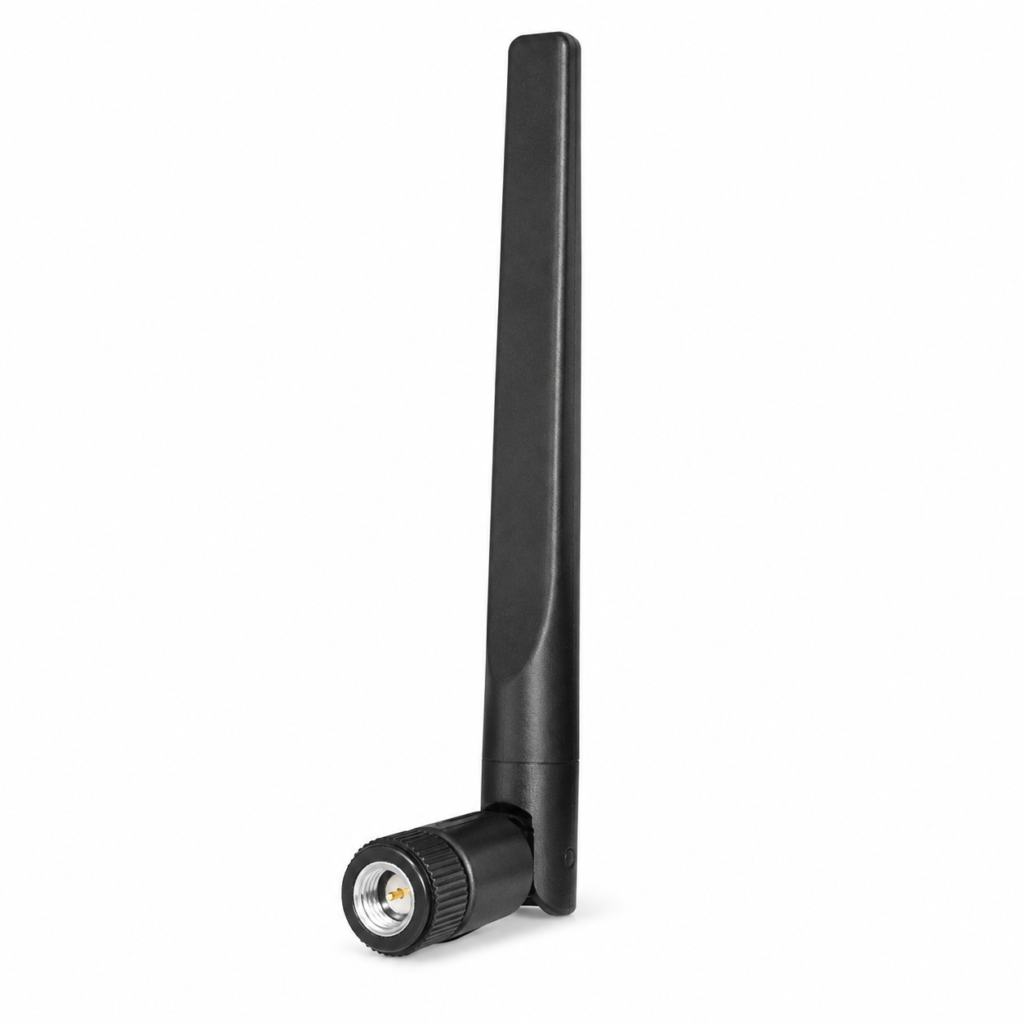

The WiFi 7 External Antenna is a compact external antenna designed for modern wireless networking equipment operating across the 2.4 GHz, 5 GHz and 6 GHz WiFi frequency ranges. It covers 2400–2500 MHz and 5100–7000 MHz, making it suitable for WiFi 7 and other compatible WLAN equipment.

With 2.35 dBi gain, 50 Ω impedance and linear polarization, the antenna provides a practical RF solution for compact wireless devices. The 134 mm PC housing incorporates an adjustable hinged structure, allowing the antenna orientation to be adapted to different equipment layouts and installation requirements.

SMA Male and RP-SMA Male connector configurations are available for integration with routers, wireless gateways, access points and other network communication devices. Black and white housing options provide additional flexibility for OEM and device-level integration.

Key Features

English

• Wide frequency coverage: 2400–2500 MHz and 5100–7000 MHz
• Suitable for 2.4 GHz, 5 GHz and 6 GHz WiFi applications
• 2.35 dBi antenna gain
• 50 Ω impedance with linear polarization
• Compact 134 mm external antenna design
• Adjustable hinged structure for flexible antenna orientation
• SMA Male and RP-SMA Male connector options
• Black and white housing options
• Operating temperature from -40°C to +85°C
• Suitable for OEM/ODM wireless equipment integration

Applications

English

• WiFi 7 routers
• Wireless access points
• Wireless gateways
• IoT gateways
• Smart home hubs
• Wireless CPE devices
• Embedded WiFi equipment
• Network communication devices
• Industrial wireless equipment

Customization Options

English

• Frequency range customization
• SMA / RP-SMA connector configuration
• Connector contact configuration
• Black or white housing options
• Mechanical structure adjustment
• Antenna housing customization
• OEM/ODM antenna development support

FAQ

Q1. What applications is this WiFi 7 antenna suitable for?

Answer:
This antenna is suitable for WiFi routers, wireless access points, IoT gateways, smart home hubs, wireless CPE and other networking equipment requiring an external 2.4 GHz, 5 GHz or 6 GHz antenna.

Q2. What frequency ranges does this antenna support?

Answer:
The standard antenna covers 2400–2500 MHz and 5100–7000 MHz, supporting wireless equipment operating across the 2.4 GHz, 5 GHz and 6 GHz WiFi frequency ranges.

Q3. What connector options are available?

Answer:
SMA Male and RP-SMA Male connector configurations are available. Connector configuration can be selected according to the RF interface of the customer’s device.

Q4. Can the antenna configuration be customized?

Answer:
Yes. Nova Antenna supports customization of frequency range, connector configuration, housing color and mechanical structure according to project requirements.

Q5. Does Nova Antenna support OEM/ODM projects?

Answer:
Yes. OEM/ODM antenna development is available for wireless networking and IoT equipment projects, including RF and mechanical configuration adjustments based on device integration requirements.
