5.8GHz FPV UAV Antenna with SMA Male Connector | Circular Polarized Drone Antenna

Product Content

Short Description
The 5.8GHz FPV UAV Antenna is designed for drone video transmission and wireless communication systems, featuring 5700–5950MHz operation, 2.6dBi gain, circular polarization, and an SMA male connector.

Product Overview

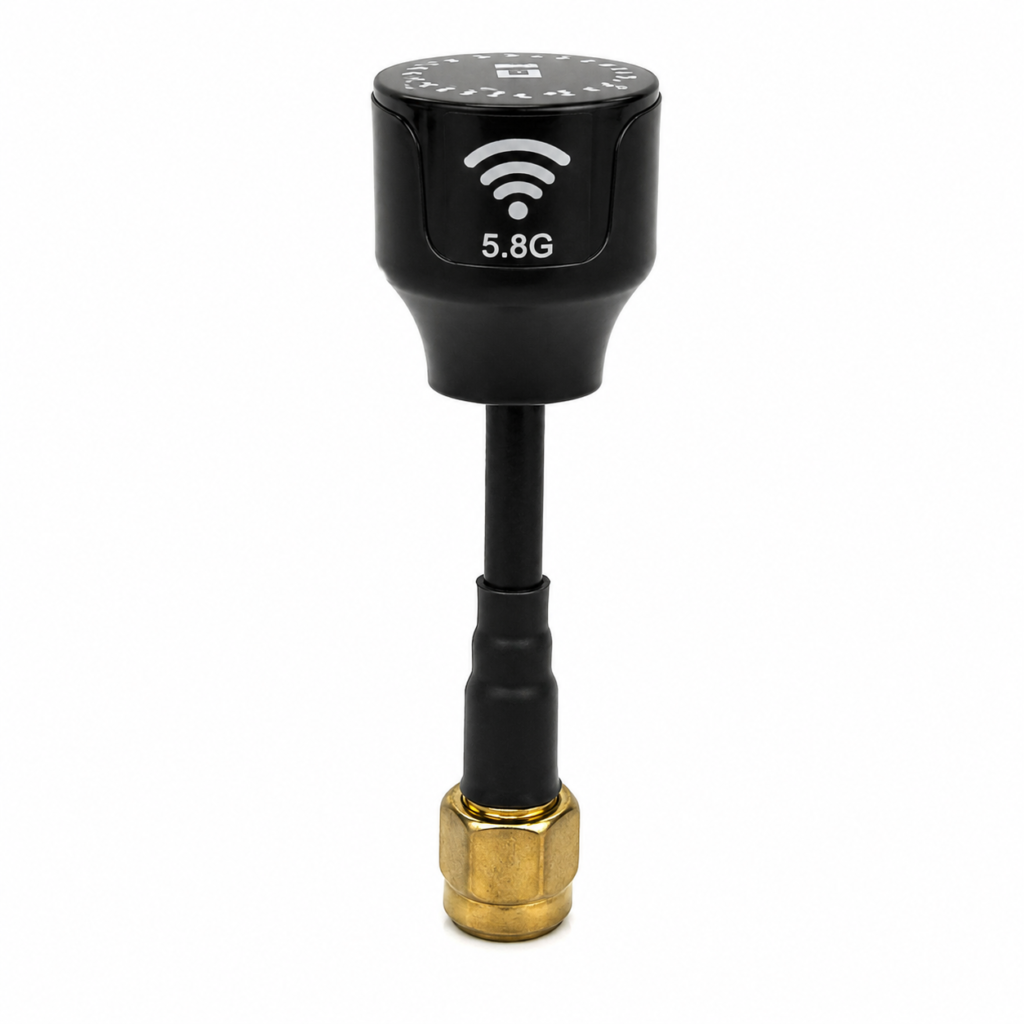

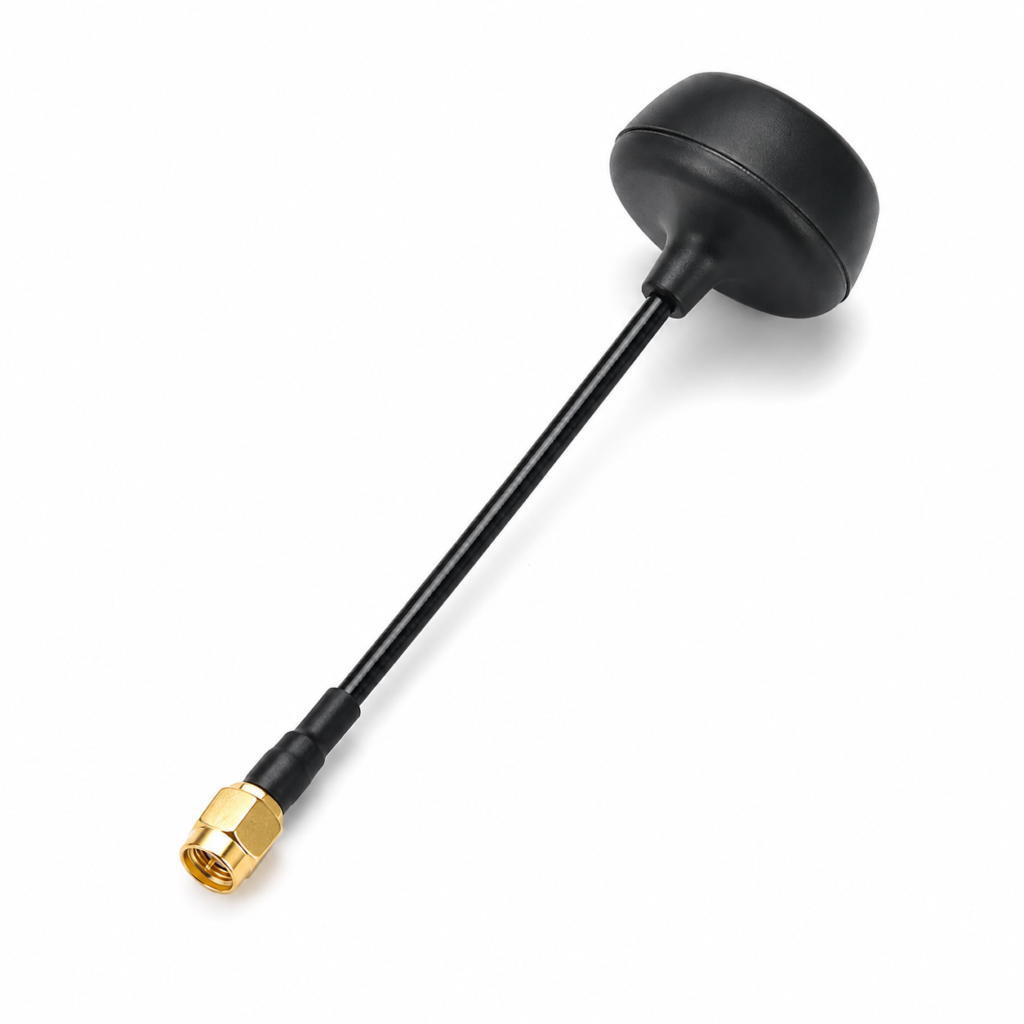

The 5.8GHz FPV UAV Antenna is a compact external antenna designed for FPV drone systems, UAV video transmission equipment, and short-range wireless communication applications.

Operating from 5700 to 5950MHz, the antenna provides 2.6dBi gain with circular polarization and a 50Ω impedance. Its lightweight mushroom-style ABS radome and flexible coaxial cable make it suitable for installation on compact UAV platforms and wireless modules.

The SMA male connector allows convenient integration with compatible RF equipment, while frequency, cable length, connector configuration, and mechanical details can be customized for OEM and ODM projects.

Key Features

• 5700–5950MHz frequency coverage
• 2.6dBi antenna gain
• Circular polarization
• 50Ω impedance
• SMA male connector
• Compact Ø35 × 165mm structure
• Lightweight 14.7g design
• Supports OEM/ODM customization

Applications

• FPV drone video transmission systems
• UAV communication systems
• Drone remote control equipment
• Wireless telemetry systems
• FPV goggles and receiver systems
• Industrial UAV platforms

Customization Options

• Frequency range customization
• Cable length customization
• RF connector customization
• Antenna structure adjustment
• Cable configuration options
• OEM/ODM antenna development

FAQ

Q1: What applications is this 5.8GHz FPV antenna suitable for?
It is suitable for FPV drone systems, UAV video transmission, wireless telemetry, remote control equipment, and other 5.8GHz RF communication applications.

Q2: What frequency range does the antenna support?
The confirmed frequency range is 5700–5950MHz.

Q3: What connector does this antenna use?
The standard configuration shown uses an SMA male connector.

Q4: Is the antenna RHCP or LHCP?
The supplied product information confirms circular polarization but does not specify RHCP or LHCP. The exact polarization direction should be confirmed according to the required configuration.

Q5: Can the cable length and connector be customized?
Yes. Cable length, connector type, frequency configuration, and mechanical structure can be customized according to project requirements.

Q6: Does Nova Antenna support OEM/ODM service?
Yes. OEM/ODM support is available for antenna frequency, cable, connector, mechanical structure, and integration requirements.
