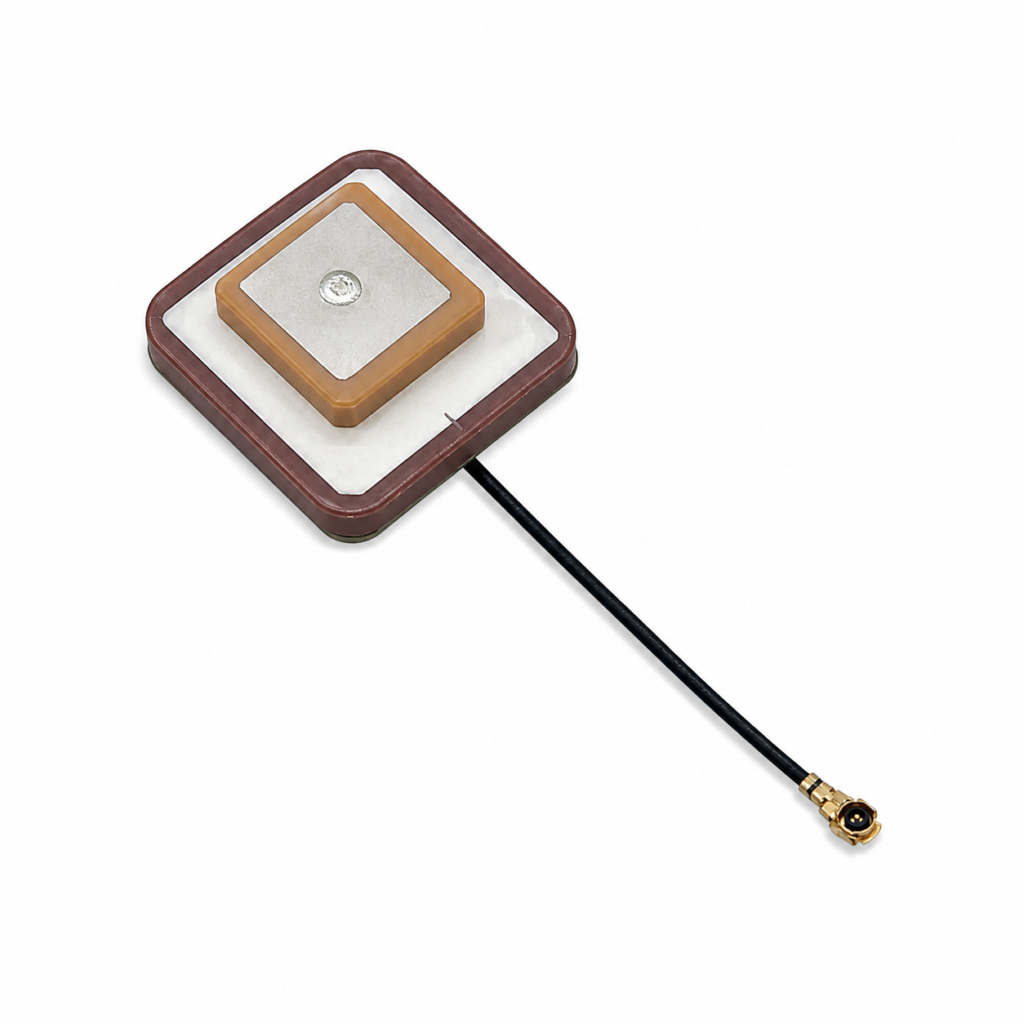

Stacked Ceramic GNSS GPS Active Antenna with IPEX Connector
| Parameter | Value |
|---|---|
| Frequency | 1561 MHz / 1575 MHz / 1176 MHz |
| Gain | 18 ± 2 dB |
| Impedance | 50 Ω |
| VSWR | Not Provided |
| Polarization | Not Provided |
| Noise Figure | Not Provided |
| Return Loss | Not Provided |
| Efficiency | Not Provided |
| Parameter | Value |
|---|---|
| Antenna Type | Stacked Ceramic GNSS/GPS Antenna |
| Main Ceramic Dimension | 25 × 25 × 4 mm |
| Upper Ceramic Dimension | 15 × 15 × 4 mm |
| Cable Type | 1.13 mm Black Coaxial Cable |
| Cable Length | Customizable |
| Connector | IPEX / Customizable |
| Weight | 18.5 g |
| Operating Temperature | -40°C to +85°C |
| Mounting Method | Not Provided |
| IP Rating | Not Provided |
Product Content
Short Description
The Stacked Ceramic GNSS GPS Active Antenna is designed for compact positioning and tracking devices, featuring 1561/1575/1176 MHz frequency support, 18 ± 2 dB gain, a stacked ceramic structure, and a 1.13 mm coaxial cable with IPEX connectivity.
Product Overview
The Stacked Ceramic GNSS GPS Active Antenna is designed for integration into professional positioning, navigation, tracking, and telematics equipment. Its compact stacked ceramic construction provides an efficient antenna solution for embedded GNSS applications where installation space is limited.
The antenna supports 1561 MHz, 1575 MHz, and 1176 MHz frequencies and is specified with 18 ± 2 dB gain and 50 Ω impedance. A 1.13 mm black coaxial cable provides a compact RF connection between the antenna and the host device.
With customizable cable length and connector options, the antenna can be adapted to different GNSS terminal designs, making it suitable for OEM positioning devices, vehicle tracking systems, IoT terminals, and industrial location equipment.
Key Features
- Stacked ceramic antenna design for compact device integration
- Supports 1561 MHz, 1575 MHz, and 1176 MHz frequencies
- 18 ± 2 dB specified gain
- 50 Ω impedance
- Compact 25 × 25 × 4 mm main ceramic structure
- 1.13 mm black coaxial RF cable
- IPEX connector configuration
- Customizable cable length and connector options
- Operating temperature from -40°C to +85°C
Applications
- GNSS and GPS positioning terminals
- Vehicle tracking and telematics systems
- Asset tracking devices
- Navigation equipment
- IoT positioning terminals
- Industrial positioning equipment
- Embedded location and tracking systems
Customization Options
- Frequency configuration customization
- Cable length customization
- Connector customization
- IPEX connector options
- Soldered cable termination option
- Mechanical integration support
- OEM/ODM antenna customization
FAQ
Q1: What applications is this GNSS GPS antenna suitable for?
This antenna is suitable for GNSS/GPS positioning terminals, vehicle tracking systems, telematics devices, navigation equipment, IoT tracking terminals, and other embedded positioning applications.
Q2: Which frequencies does this antenna support?
The supplied product specification lists 1561 MHz, 1575 MHz, and 1176 MHz.
Q3: Can the cable length be customized?
Yes. The 1.13 mm coaxial cable length can be customized according to device integration requirements.
Q4: What connector options are available?
The supplied product information shows IPEX connector options as well as a soldered termination option. Connector configuration can be customized according to project requirements.
Q5: Does Nova Antenna support OEM/ODM customization?
Yes. Frequency configuration, cable length, connector configuration, and mechanical integration can be customized for OEM/ODM projects.
