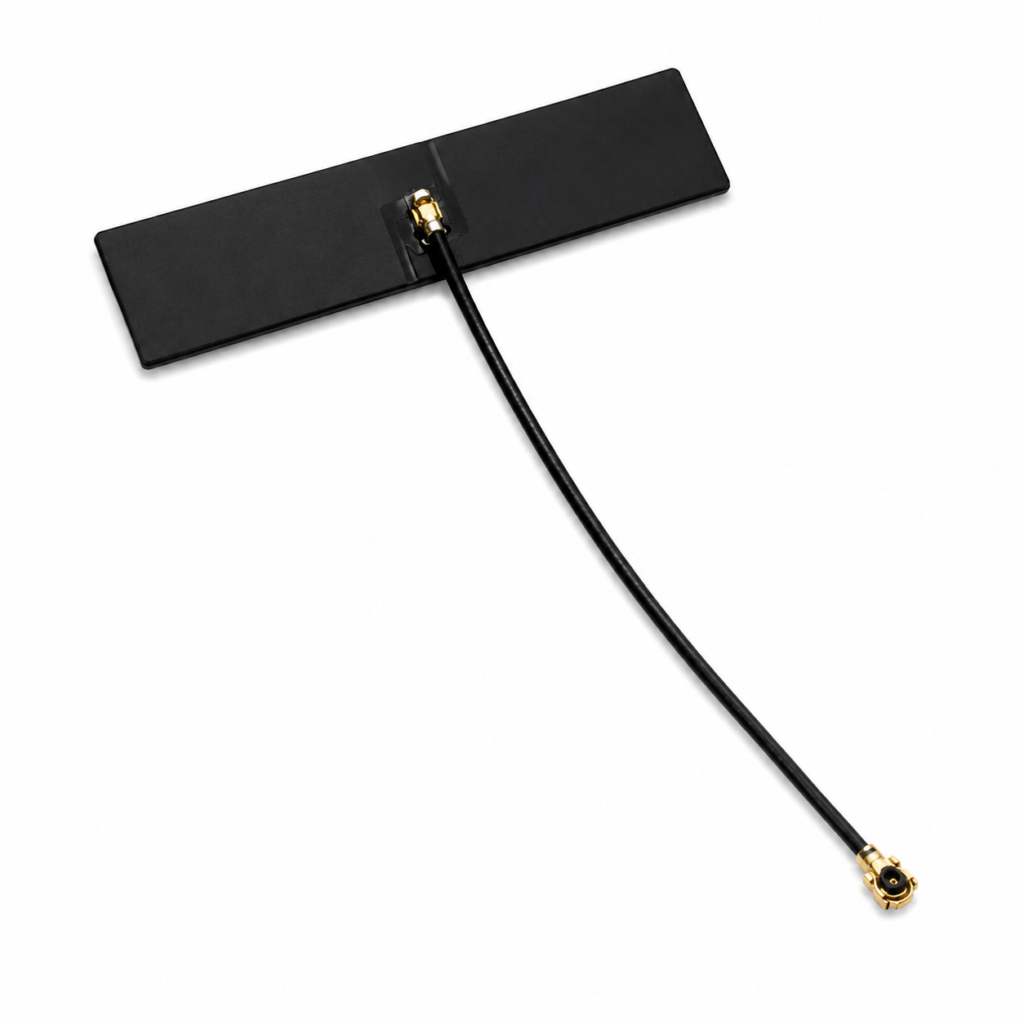

2.4GHz / 5GHz Internal FPC Antenna with IPEX Connector
| Parameter | Value |
|---|---|
| Frequency Range | 2.4GHz / 5GHz |
| Gain | 5dBi (Supplier-Stated) |
| VSWR | Not Provided |
| Impedance | Not Provided |
| Polarization | Not Provided |
| Radiation Pattern | Not Provided |
| Efficiency | Not Provided |
| Return Loss | Not Provided |
| Parameter | Value |
|---|---|
| Antenna Type | Internal Flexible FPC Antenna |
| Connector | IPEX-Type Connector |
| Cable Type | Flexible Coaxial Cable |
| Cable Length | Customizable / Not Provided |
| FPC Dimension | Not Provided |
| Color | Black |
| Mounting Method | Adhesive Mounting |
| Adhesive | 3M Adhesive Backing |
| Weight | Not Provided |
| Operating Temperature | Not Provided |
Product Content
Short Description
The 2.4GHz / 5GHz Internal FPC Antenna is a compact dual-band antenna designed for integration into WiFi, IoT and embedded wireless devices. Its flexible FPC construction, adhesive mounting and IPEX connection support space-efficient internal installation.
Product Overview
The 2.4GHz / 5GHz Internal FPC Antenna is a flexible embedded antenna designed for wireless devices requiring a compact internal antenna solution. Its thin FPC structure makes it suitable for integration into space-constrained electronic enclosures.
The antenna supports 2.4GHz and 5GHz dual-band operation and uses a flexible coaxial cable with an IPEX-type RF connector. Adhesive backing allows the FPC element to be mounted directly to a suitable internal surface of the device enclosure.
Designed for embedded wireless integration, this FPC antenna can be used in WiFi routers, IoT gateways, smart home devices, set-top boxes and other wireless electronic equipment. Cable length and connector configurations can be customized according to device integration requirements.
Key Features
- 2.4GHz / 5GHz dual-band operation
- Ultra-thin flexible FPC antenna structure
- Adhesive mounting for internal device integration
- Compact design for space-constrained electronic equipment
- IPEX-type RF connector with customizable cable length
Applications
- WiFi routers and access devices
- IoT gateways
- Smart home devices
- Set-top boxes
- Embedded wireless equipment
- Wireless communication modules
Customization Options
- Frequency customization
- Cable length customization
- Connector customization
- FPC mechanical design adjustment
- Adhesive mounting configuration
- OEM/ODM antenna development support
FAQ
Q1: What applications is this internal FPC antenna suitable for?
A: This antenna is suitable for WiFi routers, IoT gateways, smart home devices, set-top boxes and other embedded wireless equipment requiring a compact internal antenna.
Q2: Does this FPC antenna support both 2.4GHz and 5GHz?
A: Yes. This product is designed for 2.4GHz and 5GHz dual-band wireless applications.
Q3: Can the cable length and connector be customized?
A: Yes. Cable length and connector configurations can be customized according to device integration and RF design requirements.
Q4: How is the FPC antenna installed inside a device?
A: The flexible antenna element uses adhesive backing for mounting to a suitable internal surface of the device enclosure.
Q5: Does Nova Antenna support OEM/ODM customization?
A: Yes. Nova Antenna supports OEM/ODM antenna development, including frequency, cable, connector and mechanical configuration customization.
