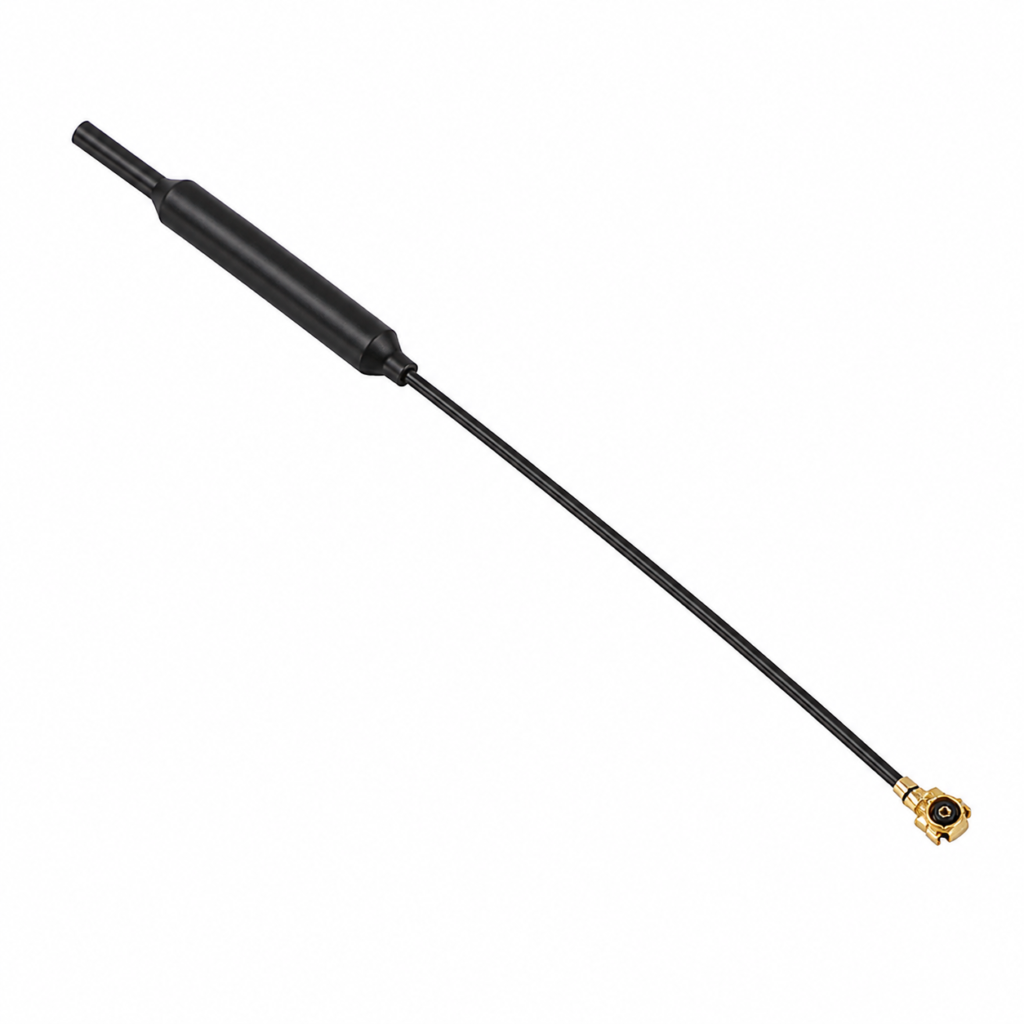

2.4GHz Internal Copper Tube Antenna | 3dBi Embedded WiFi Antenna
| Parameter | Value |
|---|---|
| Product Type | Internal Copper Tube Antenna |
| Frequency Range | 2400–2500 MHz |
| Gain | 3 dBi |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Polarization | Linear |
| Cable Type | RG1.13 |
| Overall Length | 150 mm |
| Copper Tube Length | 25 mm |
| Connector | Customizable / According to Configuration |
| Operating Temperature | Not Provided |
| Storage Temperature | Not Provided |
| Radiation Pattern | Not Provided |
| Efficiency | Not Provided |
| Return Loss | Not Provided |
| Weight | Not Provided |
Product Content
Short Description
The 2.4GHz Internal Copper Tube Antenna is a compact embedded antenna designed for 2400–2500MHz wireless applications. It features 3dBi gain, RG1.13 coaxial cable, 50Ω impedance and a protected full-copper tube antenna element for integration into wireless devices.
Product Overview
The 2.4GHz Internal Copper Tube Antenna is designed for embedded wireless communication equipment operating in the 2400–2500MHz frequency range. Its slim structure makes it suitable for integration inside compact electronic enclosures where installation space is limited.
The antenna uses a full-copper tube antenna element with a protective sleeve and RG1.13 coaxial cable. With 3dBi nominal gain, VSWR ≤1.5 and 50Ω impedance, it provides a practical antenna solution for 2.4GHz wireless hardware.
The compact 150mm overall structure can be integrated into WiFi-enabled devices, IoT terminals, wireless modules, routers, gateways and other embedded 2.4GHz communication equipment.
Key Features
- 2400–2500MHz frequency range
- 3dBi nominal antenna gain
- VSWR ≤ 1.5
- 50Ω impedance
- Full-copper tube antenna element
- Compact 25mm copper tube section
- RG1.13 coaxial cable
- Slim structure for embedded device integration
- Connector configuration can be customized according to project requirements
Applications
- 2.4GHz WiFi devices
- Wireless routers and gateways
- IoT communication equipment
- Wireless communication modules
- Smart home devices
- Industrial wireless equipment
- Embedded RF systems
- Other 2400–2500MHz wireless devices
Customization Options
- Frequency customization
- Cable length customization
- RF cable configuration
- Connector customization
- Antenna element and mechanical design adjustment
- OEM/ODM support
FAQ
Q1: What frequency range does this internal antenna support?
The antenna is designed for operation within the 2400–2500MHz frequency range.
Q2: What type of cable is used with this antenna?
The standard product uses RG1.13 coaxial cable.
Q3: What is the overall antenna length?
The reference configuration has an overall length of approximately 150mm, including the cable and antenna section.
Q4: What is the length of the copper tube section?
The copper tube antenna section is approximately 25mm long.
Q5: Can the connector and cable length be customized?
Yes. Connector type and cable length can be customized according to device and project requirements.
Q6: What applications is this antenna suitable for?
It is suitable for 2.4GHz WiFi devices, IoT equipment, wireless modules, routers, gateways and other embedded wireless communication systems.
Q7: Does Nova Antenna support OEM/ODM projects?
Yes. Frequency, cable, connector and mechanical configuration can be customized for OEM/ODM antenna projects.
