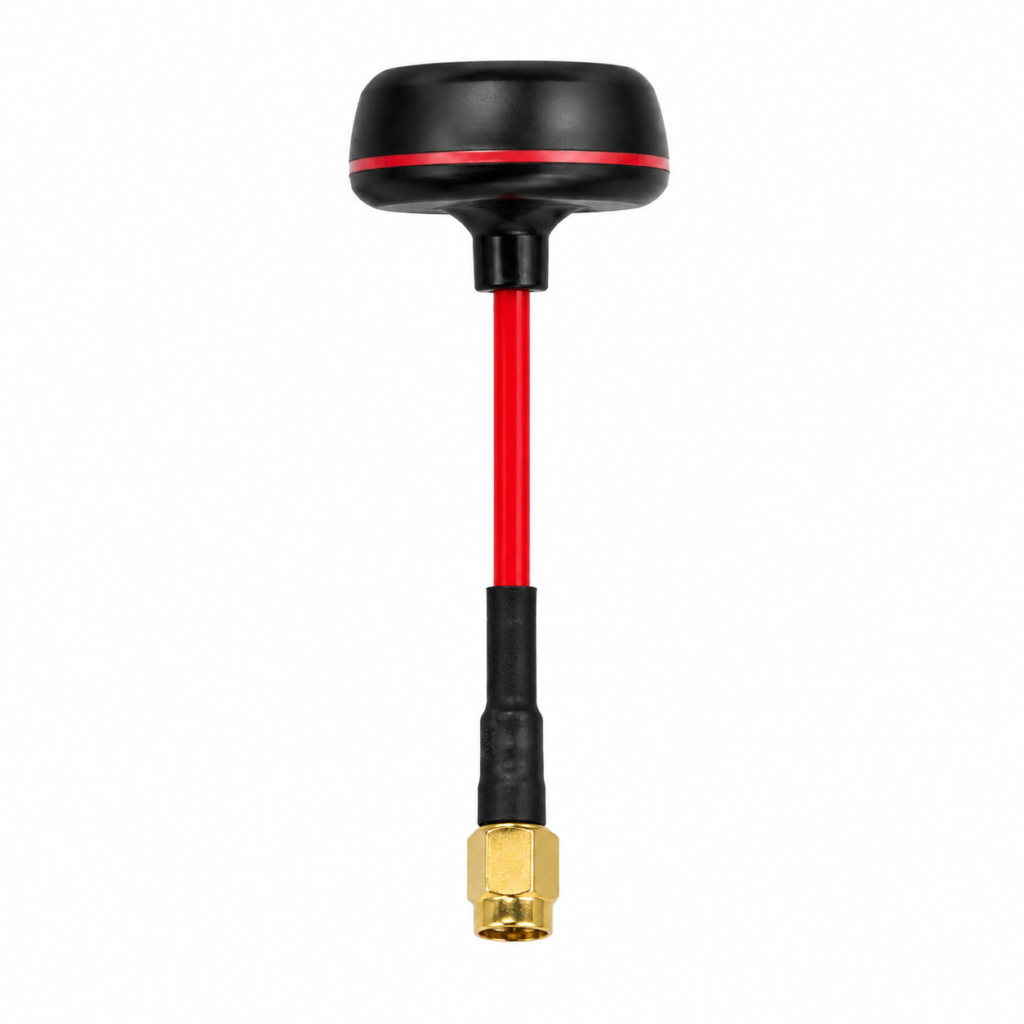

2.4GHz / 5.8GHz FPV UAV Antenna with SMA Connector | RHCP Omnidirectional Drone Antenna
| Parameter | Value |
|---|---|
| Frequency Range | 2400–2500 MHz / 5100–5900 MHz |
| Gain | 3–5 dBi |
| VSWR | ≤1.5 |
| Impedance | 50Ω |
| Polarization | RHCP Circular Polarization |
| Radiation Pattern | Omnidirectional |
| Connector | SMA |
| Cable Type | Not Provided |
| Cable Length | Not Provided |
| Dimensions | Not Provided |
| Weight | Not Provided |
| Operating Temperature | -40°C to +85°C |
Short Description
The 2.4GHz / 5.8GHz FPV UAV Antenna is designed for reliable drone communication and FPV wireless transmission, featuring RHCP circular polarization, omnidirectional coverage, 3–5 dBi gain, and SMA connector compatibility.
Product Overview
The 2.4GHz / 5.8GHz FPV UAV Antenna is an external omnidirectional antenna developed for FPV drones, UAV communication systems, wireless video transmission, and telemetry applications.
Its dual-band 2400–2500 MHz and 5100–5900 MHz operating range supports common FPV and drone communication frequencies. RHCP circular polarization and omnidirectional radiation help provide stable RF coverage across changing UAV orientations.
With a 50-ohm RF interface and SMA connector options, the antenna can be integrated into a variety of drone platforms, FPV transmitters, receivers, and industrial UAV communication systems.
Key Features
- Dual-band 2400–2500 MHz / 5100–5900 MHz operation
- 3–5 dBi antenna gain
- RHCP circular polarization
- Omnidirectional radiation pattern
- VSWR ≤1.5
- 50Ω impedance
- SMA connector compatibility
- Operating temperature from -40°C to +85°C
- OEM/ODM customization support
Applications
- FPV drone systems
- UAV communication systems
- Wireless video transmission
- Drone telemetry systems
- Remote control communication
- Industrial UAV platforms
- Wireless RF equipment integration
Customization Options
- Frequency customization
- Cable length customization
- SMA connector configuration
- Antenna mechanical design adjustment
- Housing and cable configuration
- OEM/ODM antenna development
Specification Classification
- Confirmed Specification: Frequency Range, Gain, VSWR, Impedance, Polarization, Radiation Pattern, Connector, Operating Temperature
- Not Provided: Cable Type, Cable Length, Dimensions, Weight
FAQ
Q1: What applications is this FPV UAV antenna suitable for?
It is suitable for FPV drone systems, UAV communication, wireless video transmission, telemetry systems, remote control links, and industrial UAV platforms.
Q2: What frequency bands does this antenna support?
The confirmed operating ranges are 2400–2500 MHz and 5100–5900 MHz.
Q3: What polarization does the antenna use?
The antenna uses RHCP circular polarization with an omnidirectional radiation pattern.
Q4: Can the frequency and connector be customized?
Yes. Nova Antenna supports frequency, cable length, connector, and mechanical structure customization for OEM/ODM projects.
