Short Description

The Miniature RF Coaxial Cable Assembly provides a compact RF interconnection solution for wireless modules, communication equipment and embedded RF systems, featuring a right-angle connector design for space-efficient cable routing.

Product Content

Product Overview

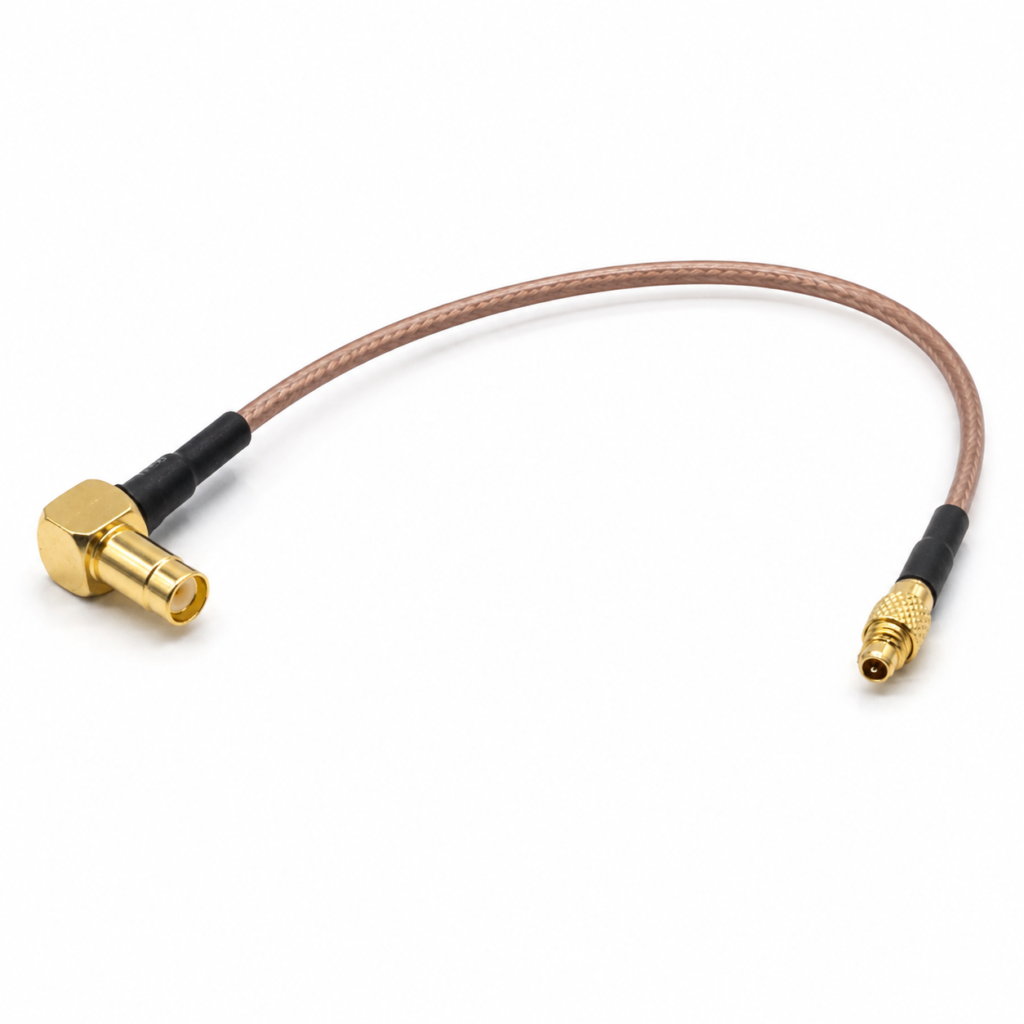

The Miniature RF Coaxial Cable Assembly is designed for RF signal interconnection in compact wireless and electronic equipment. It combines a right-angle RF connector with a small straight RF connector to provide a practical connection between compatible RF interfaces.

The right-angle connector configuration helps reduce installation space around the connection point, while the flexible coaxial cable supports convenient routing inside compact electronic enclosures.

This cable assembly is suitable for wireless communication equipment, embedded RF systems, RF modules and other professional electronic applications requiring a compact coaxial interconnection solution.

Key Features

• Compact RF Cable Assembly — Designed for RF interconnection in space-constrained electronic equipment.
• Right-Angle Connector Design — Supports practical cable routing where installation space around the RF interface is limited.
• Miniature RF Interface — Suitable for compact RF modules and electronic systems with compatible connectors.
• Flexible Cable Routing — Coaxial cable construction allows convenient internal equipment routing.
• OEM Cable Assembly Options — Connector and cable configurations can be discussed according to project requirements.

Applications

• Wireless Communication Equipment
• Embedded RF Systems
• RF Modules
• Communication Devices
• Telemetry Equipment
• RF Test Equipment
• Industrial Electronic Equipment
• OEM / ODM RF Hardware Integration

Customization Options

Nova Antenna can provide RF cable assembly customization according to project requirements.

Available customization may include:

• Connector configuration
• Connector orientation
• Cable type
• Cable length
• Cable routing requirements
• Mechanical configuration
• OEM / ODM cable assembly requirements

Please provide the required connector series, connector gender, cable type and cable length when requesting a customized cable assembly.

FAQ

What is this RF coaxial cable assembly used for?

This cable assembly is designed to provide RF signal interconnection between compatible RF interfaces in wireless communication equipment, RF modules and embedded electronic systems.

What is the advantage of the right-angle connector?

The right-angle configuration helps route the coaxial cable away from the connection point and can be useful in equipment with limited internal installation space.

What connector types are used on this cable?

The supplied images show one right-angle miniature RF connector and one straight miniature RF connector. The exact connector series is not specified in the available product information and should be confirmed before ordering.

Can the cable length and connectors be customized?

Yes. Connector configuration, cable type and cable length can be discussed according to project requirements.

Is this a BNC cable assembly?

The available product images contain supplier marketing text referring to “BNC Type,” but the exact connector series cannot be reliably confirmed from the supplied information. The connector specification should therefore be verified before production.

Does Nova Antenna support OEM/ODM cable assemblies?

Yes. OEM/ODM RF cable assembly configurations can be developed according to connector, cable and mechanical requirements.
