Short Description
Outdoor 3G/4G LTE omnidirectional antenna covering 698–960 MHz and 1710–2700 MHz with 10–12 dBi gain. Features a UV-resistant ABS radome, dual RG174 cables, metal mounting bracket, and customizable cable length and connector options for industrial cellular communication applications.

Product Content

Product Overview

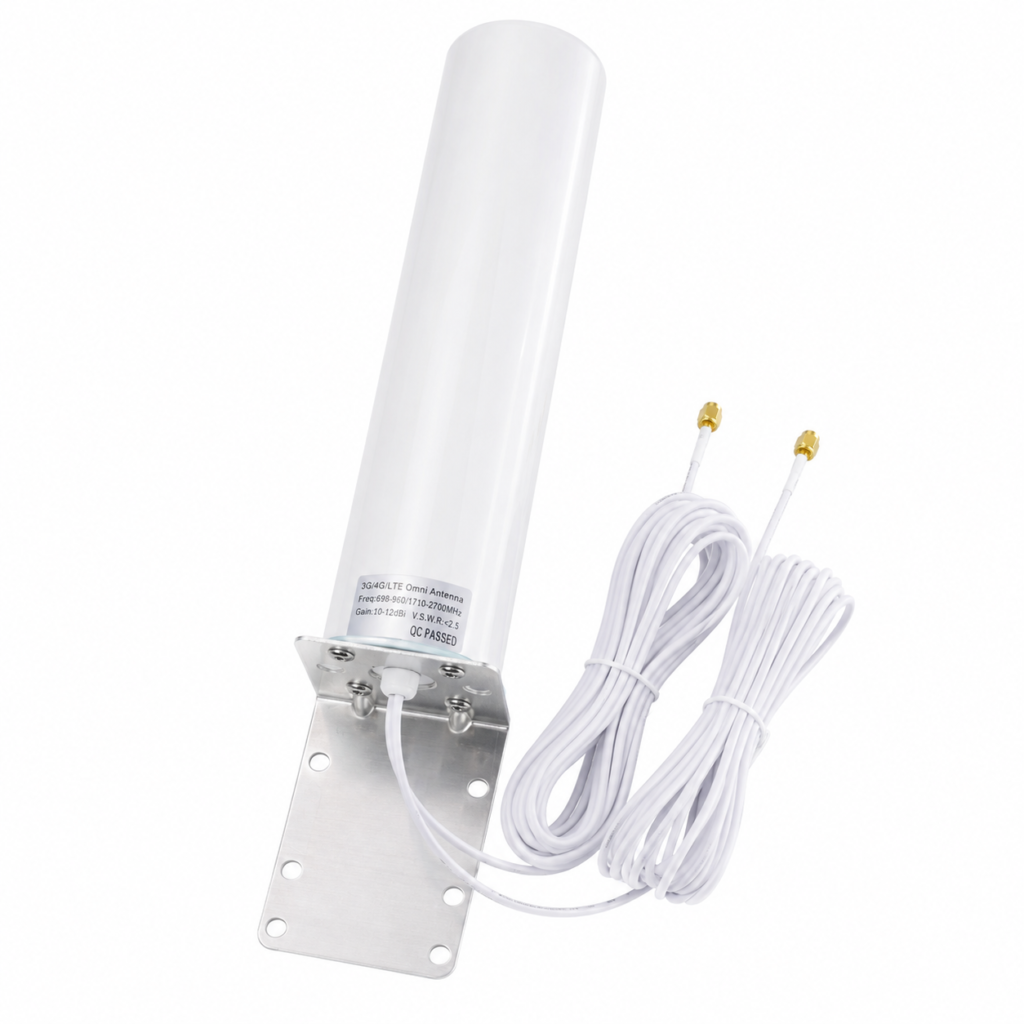

The Outdoor 3G 4G LTE Omnidirectional Antenna is designed for fixed cellular communication installations requiring wide frequency coverage and reliable omnidirectional signal reception.

Operating across 698–960 MHz and 1710–2700 MHz, the antenna provides 10–12 dBi gain with 50 Ω impedance and vertical polarization. Its omnidirectional radiation pattern makes it suitable for cellular routers, gateways, remote monitoring equipment, telemetry systems, and other industrial wireless communication applications.

The antenna uses a UV-resistant ABS radome and a metal mounting bracket for outdoor installation. Two RG174 coaxial cables are provided, with a standard cable length of 5 meters. SMA, TS9, and CRC9 connector options are available, while connector type and cable length can be customized for OEM and project requirements.

Key Features

• 698–960 MHz and 1710–2700 MHz frequency coverage
• 10–12 dBi antenna gain
• Omnidirectional radiation pattern
• 50 Ω impedance
• Vertical polarization
• Maximum input power up to 10 W
• UV-resistant ABS antenna radome
• Metal bracket for fixed installation
• Dual RG174 coaxial cable configuration
• Standard 5 m cable length
• SMA, TS9, and CRC9 connector options
• Custom cable length and connector options available

Applications

• 3G and 4G LTE routers
• Industrial cellular gateways
• IoT communication equipment
• Remote monitoring systems
• Telemetry equipment
• Cellular communication terminals
• Industrial networking systems
• Outdoor wireless communication equipment

Customization Options

Nova Antenna can support product customization for OEM and project requirements, including:

• Connector options: SMA, TS9, CRC9
• Custom connector configurations
• Custom coaxial cable length
• Black or white antenna radome options
• Project-specific antenna integration requirements

Final configuration should be confirmed according to the target device and installation requirements.

FAQ

What frequency bands does this antenna cover?

The antenna covers 698–960 MHz and 1710–2700 MHz for 3G/4G LTE cellular communication applications.

What is the antenna gain?

The specified antenna gain is 10–12 dBi.

Is this an omnidirectional antenna?

Yes. The antenna is specified with an omnidirectional radiation pattern and vertical polarization.

What cable is supplied with the antenna?

The standard configuration uses RG174 coaxial cable with a standard cable length of 5 meters.

Which connectors are available?

Available connector options include SMA, TS9, and CRC9. Other connector configurations can be discussed for customized projects.

Can the cable length be customized?

Yes. Cable length can be customized according to device integration and installation requirements.

Is this a 2×2 MIMO antenna?

The supplied specifications do not confirm a 2×2 MIMO configuration. The product therefore should not be described as a MIMO antenna unless the specific configuration is separately verified.
