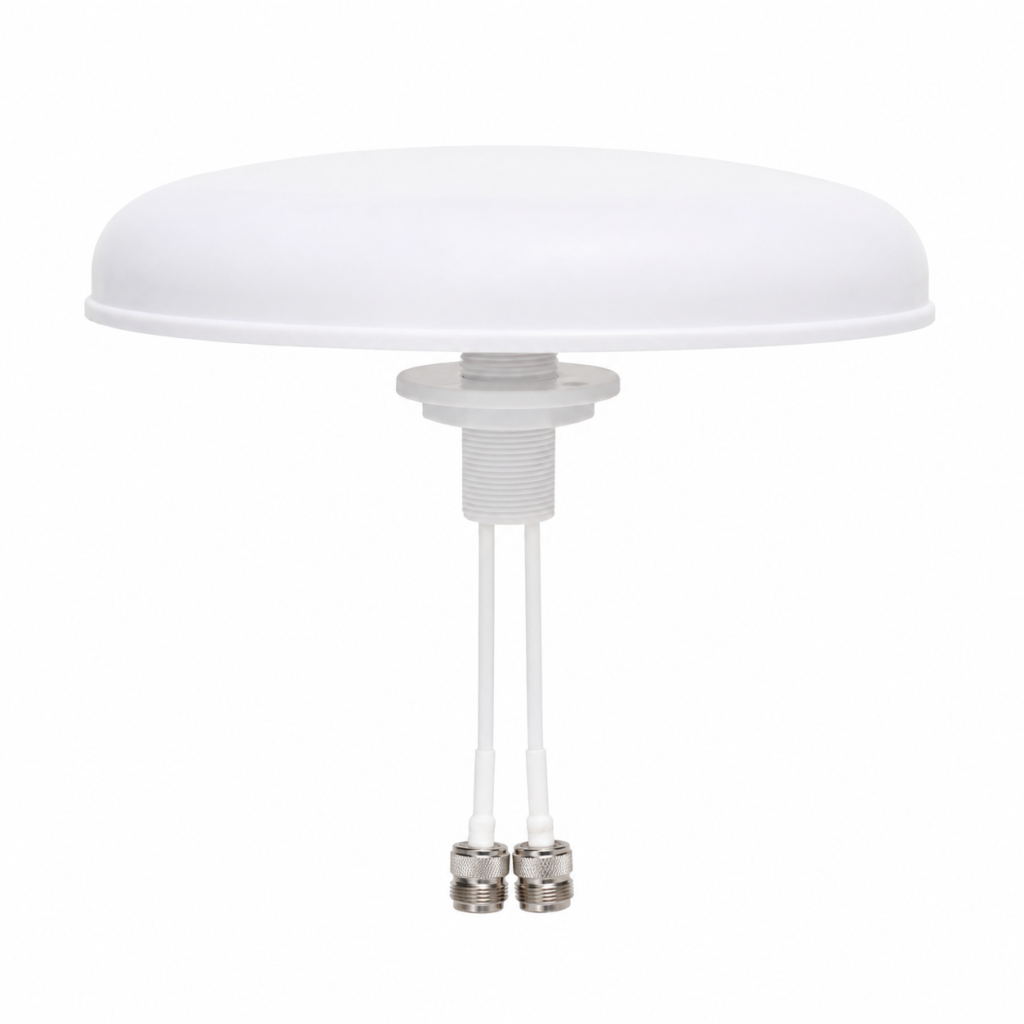

4G/LTE MIMO Ceiling Mount Antenna with Dual N Female Connector
| Parameter | Value |
|---|---|
| Frequency Range | 698–960 / 1710–2700 MHz |
| Gain | V: 2 dBi / H: 4 dBi |
| VSWR | ≤ 1.5 |
| Impedance | 50 Ω |
| Polarization | Vertical and Horizontal |
| Radiation Pattern | Omnidirectional |
| Maximum Input Power | 50 W |
| Efficiency | Not Provided |
| Return Loss | Not Provided |
| Parameter | Value |
|---|---|
| Antenna Type | Ceiling Mount MIMO Antenna |
| Connector | 2 × N Female |
| Cable Type | RG141 |
| Cable Length | 20 cm |
| Material | ABS |
| Dimension | Φ218 × 43 mm |
| Weight | 348 g |
| Mounting Method | Ceiling Mount |
| Operating Temperature | -40°C to +80°C |
| IP Rating | Not Provided |
Short Description
The 4G/LTE MIMO Ceiling Mount Antenna is designed for indoor cellular and wireless communication systems. Covering 698–960 MHz and 1710–2700 MHz, it features a dual-port MIMO structure, omnidirectional coverage, RG141 cables, and dual N Female connectors for professional RF installations.
Product Overview
The 4G/LTE MIMO Ceiling Mount Antenna is a dual-port indoor antenna designed for cellular communication and wireless system installations. Its low-profile ceiling mount structure provides a practical integration solution for indoor RF environments requiring broad LTE frequency coverage.
Operating across 698–960 MHz and 1710–2700 MHz, the antenna supports vertical and horizontal polarization with omnidirectional radiation characteristics. The design uses two RG141 coaxial cables terminated with N Female connectors for integration into compatible RF and cellular communication equipment.
With an ABS housing, compact Φ218 × 43 mm antenna body, and ceiling mounting structure, this antenna is suitable for indoor communication infrastructure, signal distribution systems, IoT equipment, and customized wireless projects.
Key Features
- Wide frequency coverage from 698–960 MHz and 1710–2700 MHz
- Dual-port MIMO antenna structure
- Omnidirectional radiation pattern
- Vertical and horizontal polarization
- Compact ceiling mount design
- 2 × N Female connectors with RG141 cable
- Supports cable and connector customization
Applications
- Indoor 4G/LTE communication systems
- Cellular signal distribution systems
- Wireless communication equipment
- Industrial communication systems
- IoT and M2M gateways
- Indoor RF infrastructure
- Customized OEM/ODM wireless projects
Customization Options
- Frequency range customization
- Cable length customization
- Connector type customization
- Cable assembly configuration
- Mechanical design adjustment
- OEM/ODM support
FAQ
Q1: What applications is this 4G/LTE MIMO ceiling antenna suitable for?
It is suitable for indoor cellular communication, wireless signal distribution, RF infrastructure, IoT equipment, and industrial communication systems.
Q2: What frequency range does the antenna support?
The standard product covers 698–960 MHz and 1710–2700 MHz.
Q3: What connector configuration is provided?
The standard configuration uses 2 × N Female connectors with RG141 cables.
Q4: Can the cable length and connector type be customized?
Yes. Cable length and connector configuration can be customized according to project requirements.
Q5: Does Nova Antenna support OEM/ODM projects?
Yes. Nova Antenna supports antenna customization and OEM/ODM development based on project requirements.
